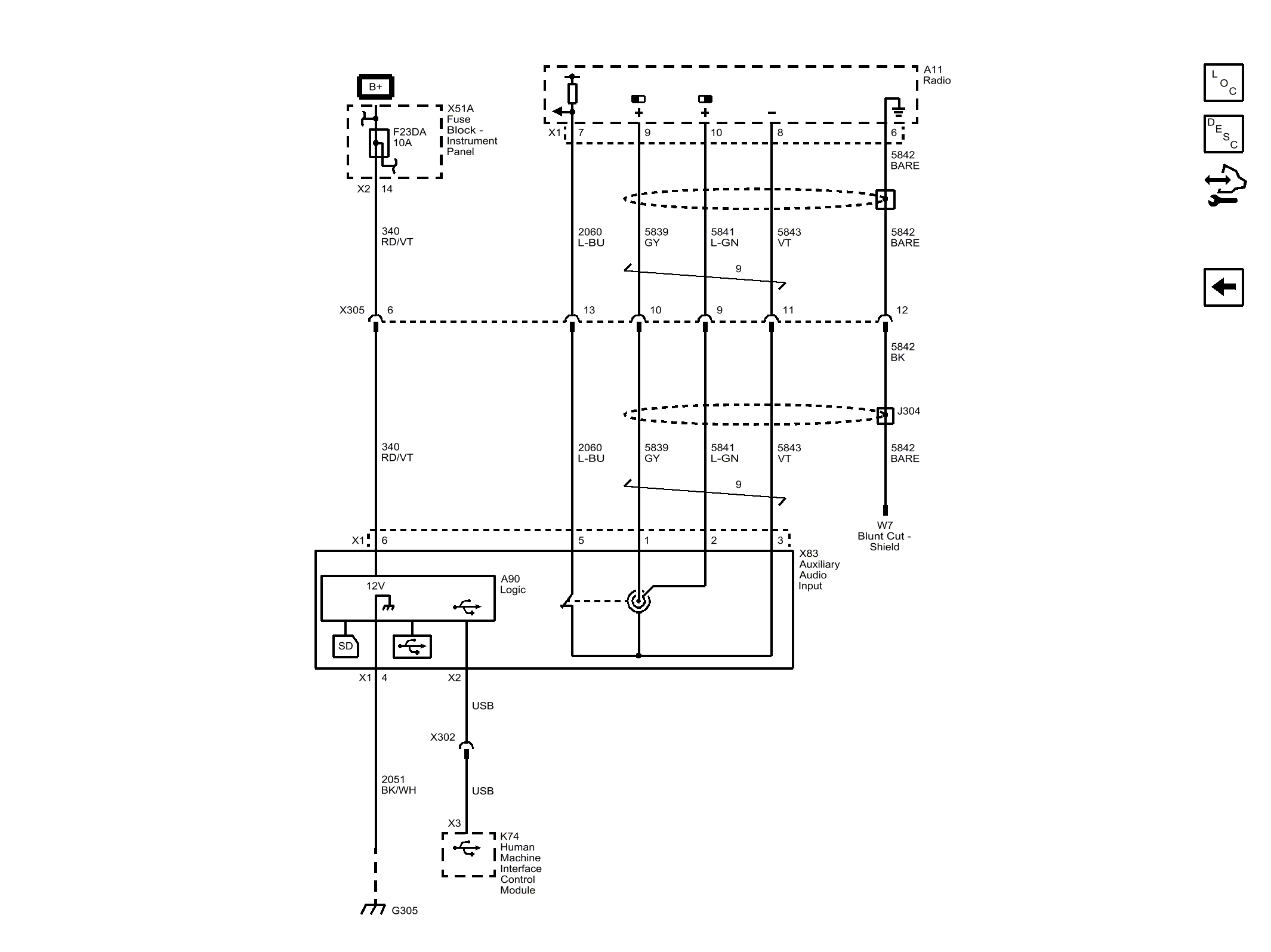

Home >> GMC >> 2015 >> Canyon SL >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System, And Navigation System >> Schematic Wiring Diagrams >> Radio/Navigation System Wiring Schematics (IO4, IO5, IO6) >> Auxiliary Inputs - Front (IO4 with N8D)
