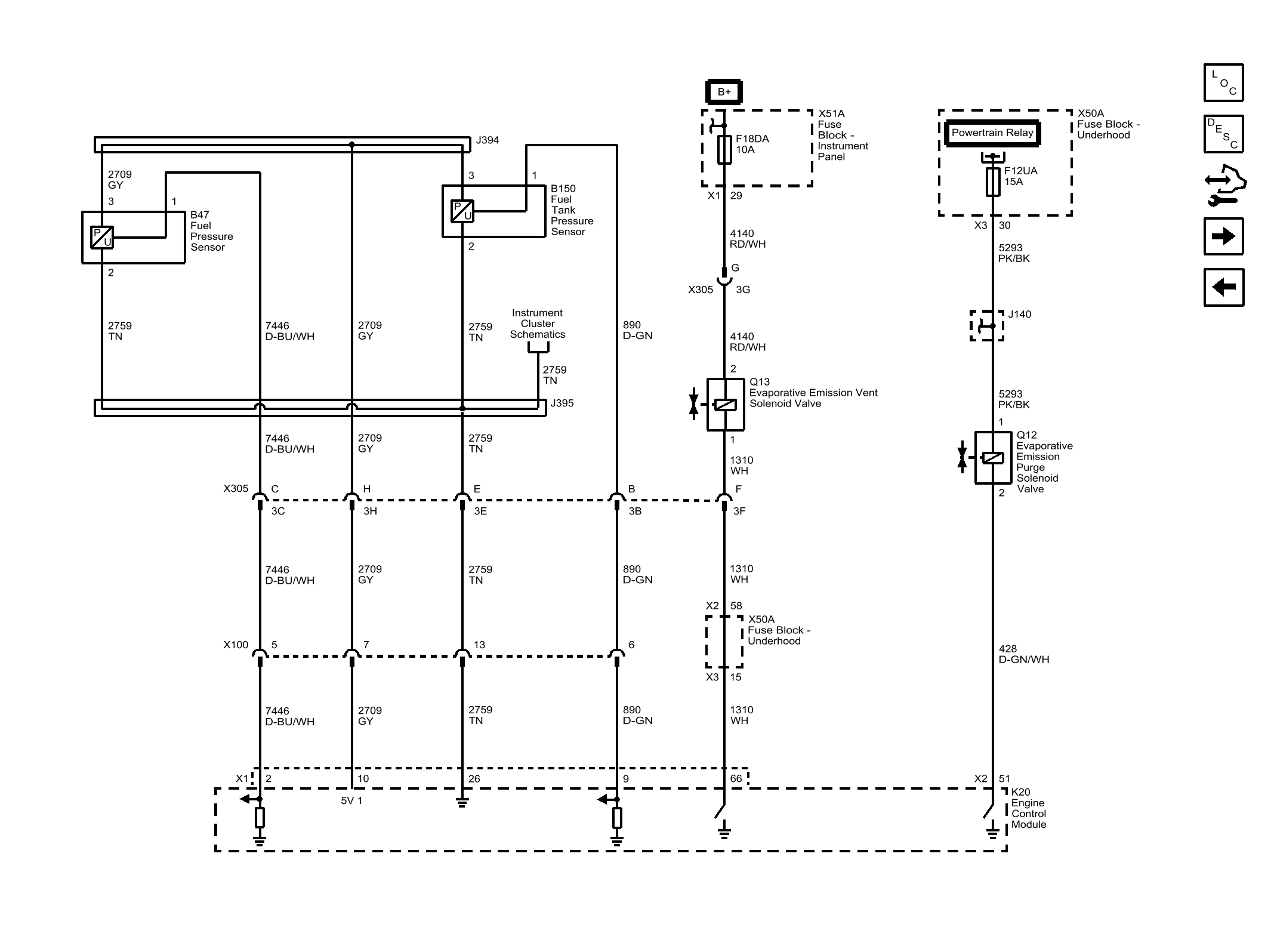

Home >> GMC >> 2015 >> Acadia SLT, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 3.6L (LLT) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Fuel Controls - EVAP Controls
