Moveable Window Wiring Schematics: Right

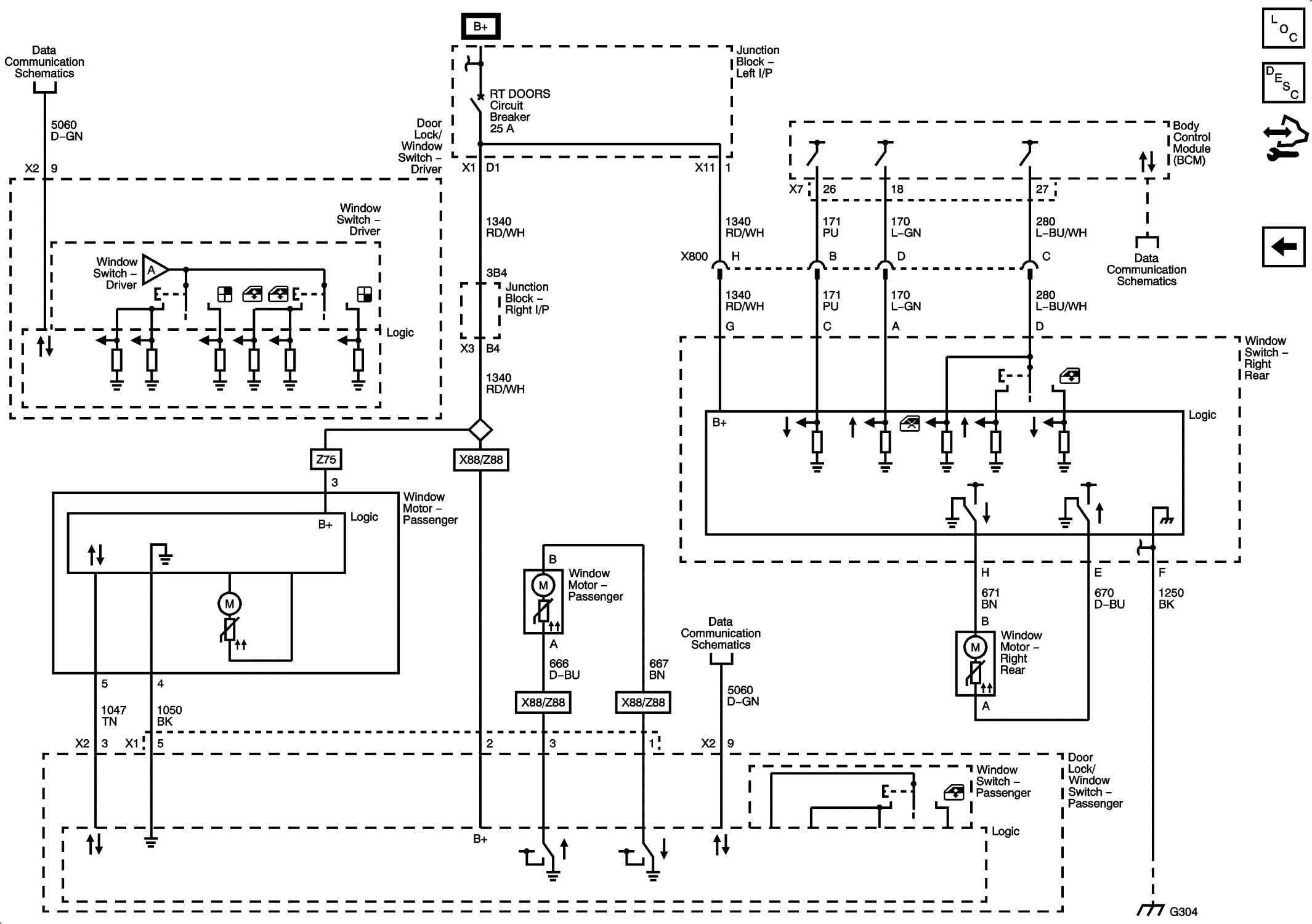

Fig 1: Right Moveable Window Wiring Schematic

GM2758979

Courtesy of GENERAL MOTORS COMPANY
