Sunroof Switch Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

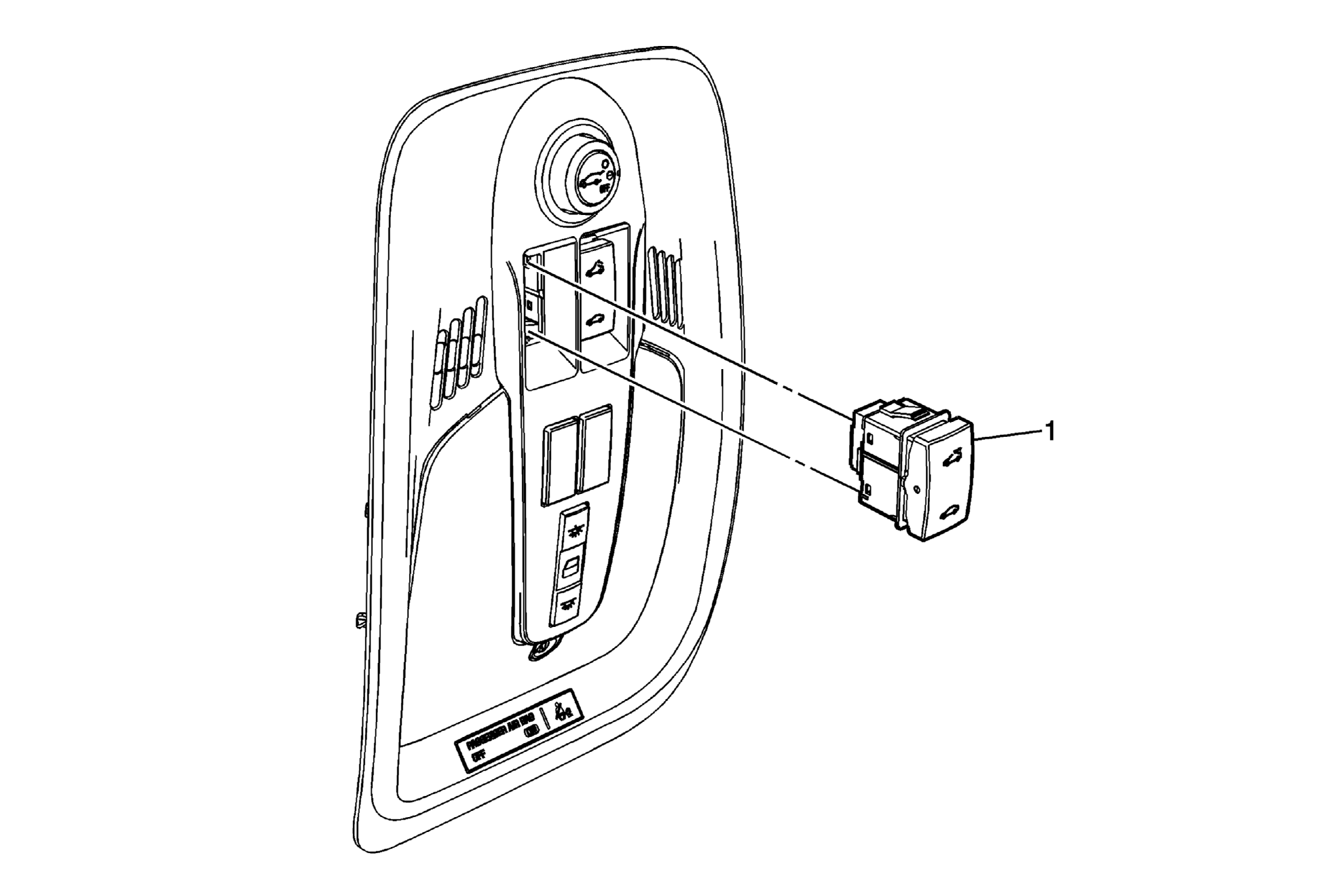

Fig 1: Sunroof Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Sunroof Switch Procedure Disconnect electrical connector. Press tabs together and remove switch.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Sunroof Switch

Procedure

Disconnect electrical connector.
Press tabs together and remove switch.
