Section 149 (Cellular System, Entertainment System, And Navigation System)
>>
Wiring Schematics
>>
Radio/Navigation System Wiring Schematics
>>
Radio Display (Without UEW Or UYS)
Radio Display (Without UEW Or UYS)
WARNING:
This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

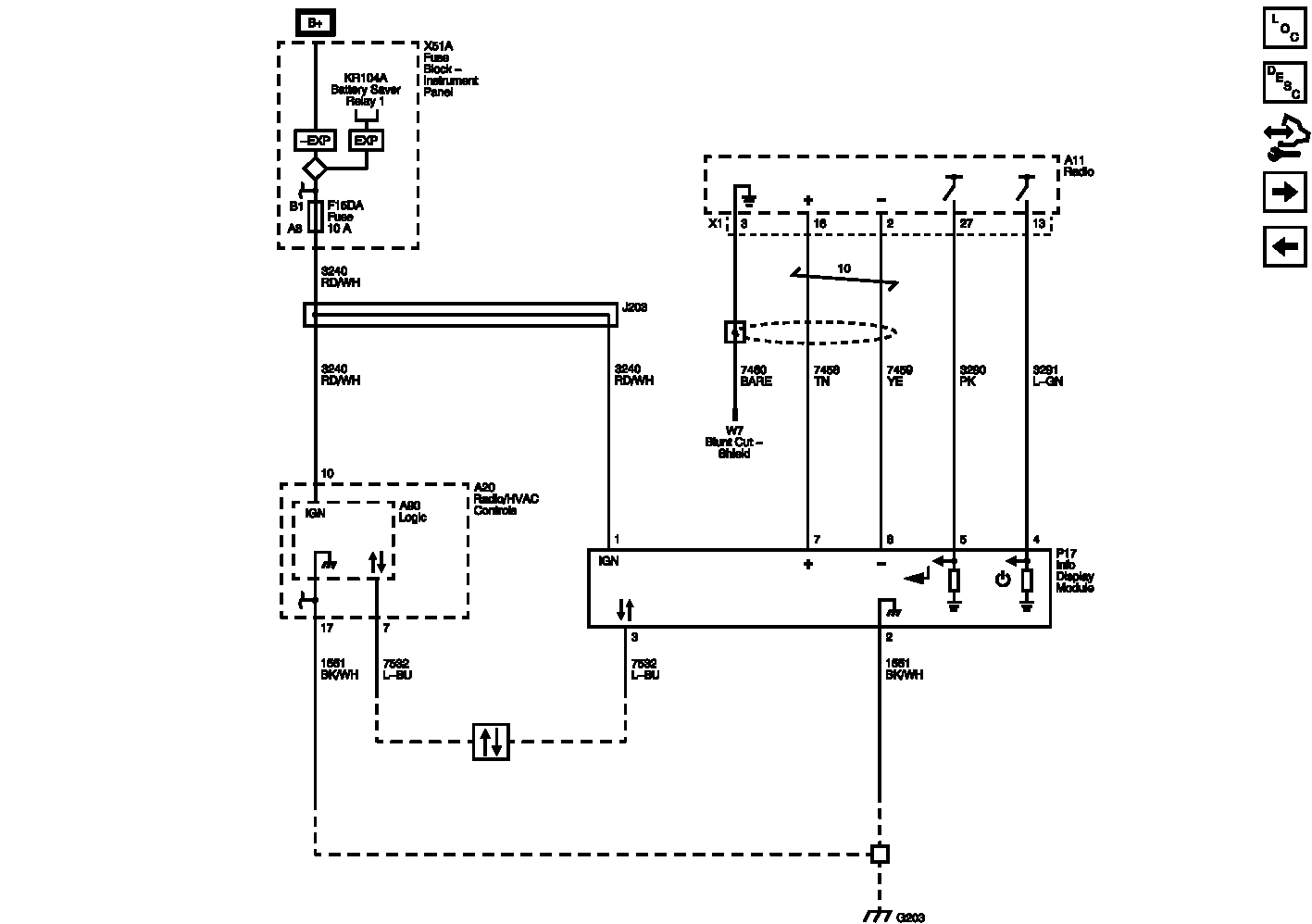

Fig 1: Radio Display (Without UEW Or UYS) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
