Powertrain Expansion Bus Wiring Schematics

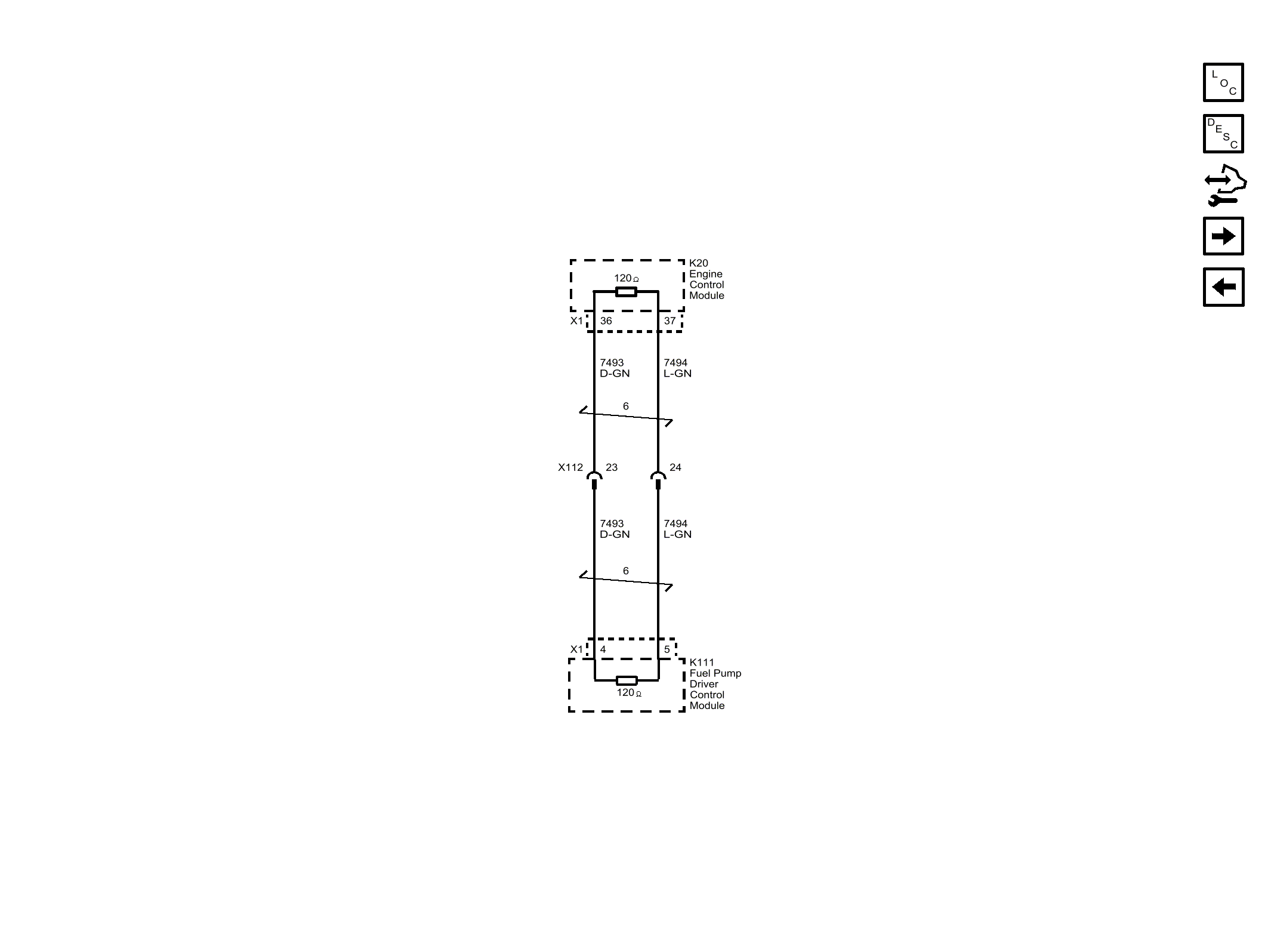

Fig 1: Powertrain Expansion Bus Wiring Schematics

GM3423775

Courtesy of GENERAL MOTORS COMPANY
