Steering Column Shroud Replacement

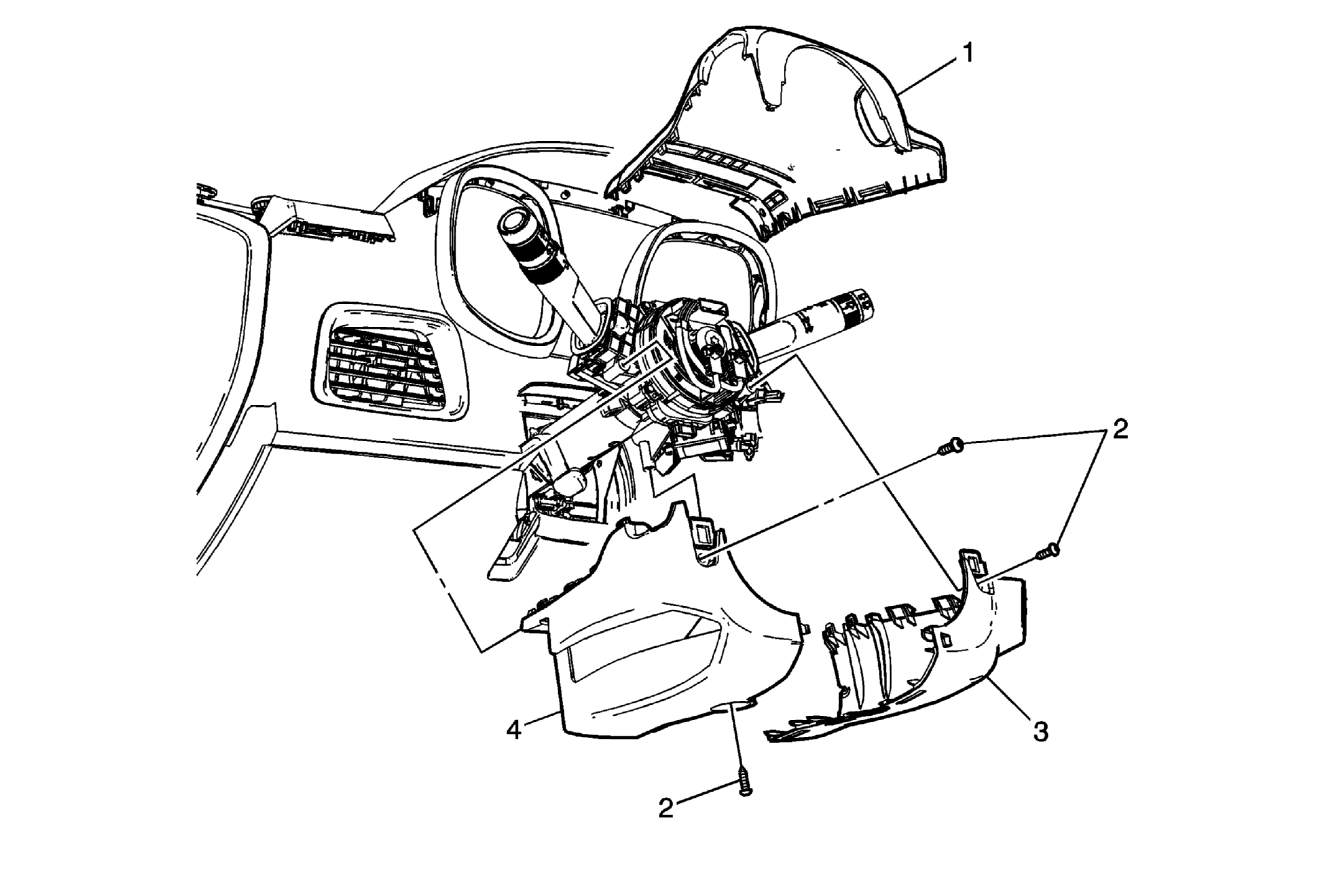

Fig 1: Steering Column Shroud

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Telescope the steering column to the maximum rearward position. Tilt the steering column to the lowest position.
1	Steering Column Upper Shroud Procedure Disconnect the upper shroud from the steering column seal.
2	Steering Column Lower Trim Cover Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Turn the ignition key to the ON position. Turn the steering wheel in order to access the fasteners. Snap the upper shroud, the lower left shroud and the lower right shroud together before installing the fasteners. Tighten 2.5 N.m (22 lb in)
3	Steering Column Lower Right Shroud
4	Steering Column Lower Left Shroud
