Vehicle Yaw Sensor Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

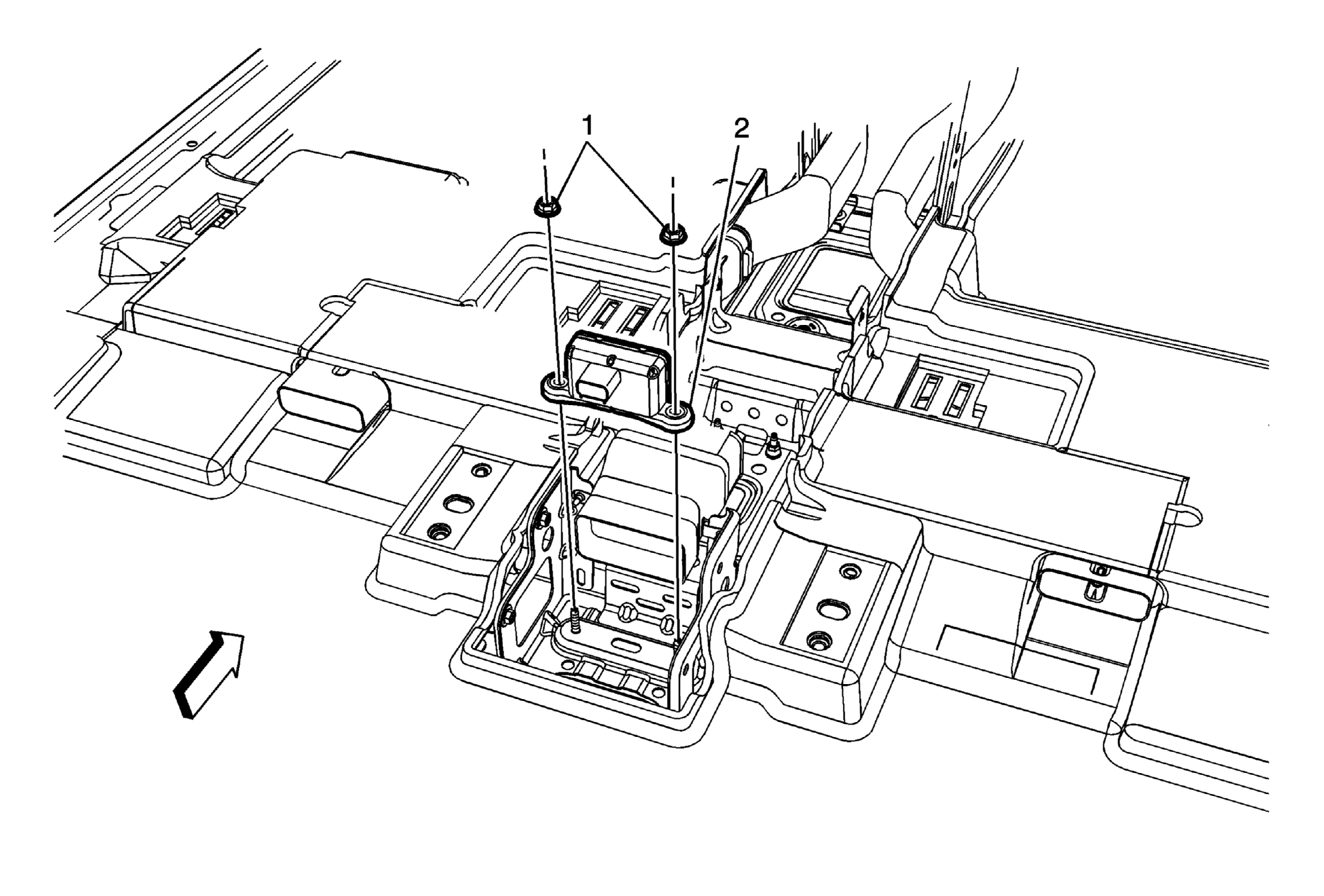

Fig 1: Vehicle Yaw Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn the ignition OFF. Remove the front floor console. Refer to Front Floor Console Replacement .
1	Yaw Rate Sensor Nut CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Yaw Sensor Procedure After the installation is complete, configure the yaw sensor. Refer to Multi-Axis Acceleration Sensor in Electronic Brake Control Module Programming and Setup . After the installation is complete, perform the Vehicle Yaw Sensor Learn .

Callout

Component Name

Preliminary Procedures

Turn the ignition OFF.
Remove the front floor console. Refer to Front Floor Console Replacement .

Yaw Rate Sensor Nut

CAUTION: Refer to Fastener Caution .

Tighten: 6 N.m (53 lb in)

Yaw Sensor

Procedure

After the installation is complete, configure the yaw sensor. Refer to Multi-Axis Acceleration Sensor in Electronic Brake Control Module Programming and Setup .
After the installation is complete, perform the Vehicle Yaw Sensor Learn .
