Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2010 GMC Terrain and 2010 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

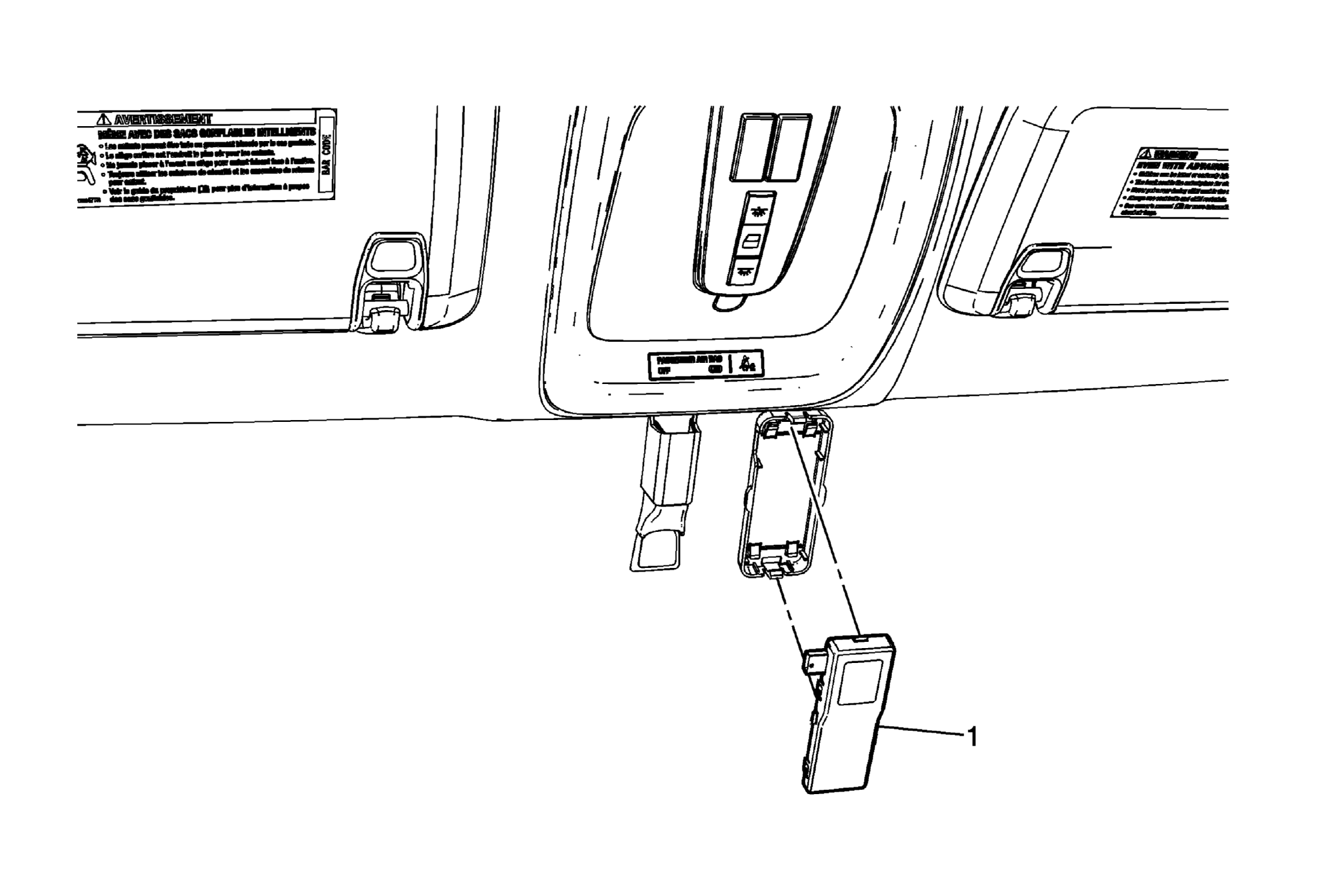

Fig 1: Identifying Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inside rearview mirror mount plate cover.
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the windshield bracket. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the inside rearview mirror mount plate cover.

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the receiver from the windshield bracket.
For programming and set up, refer to Control Module References
