Radio Display (UHQ or UFU)

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

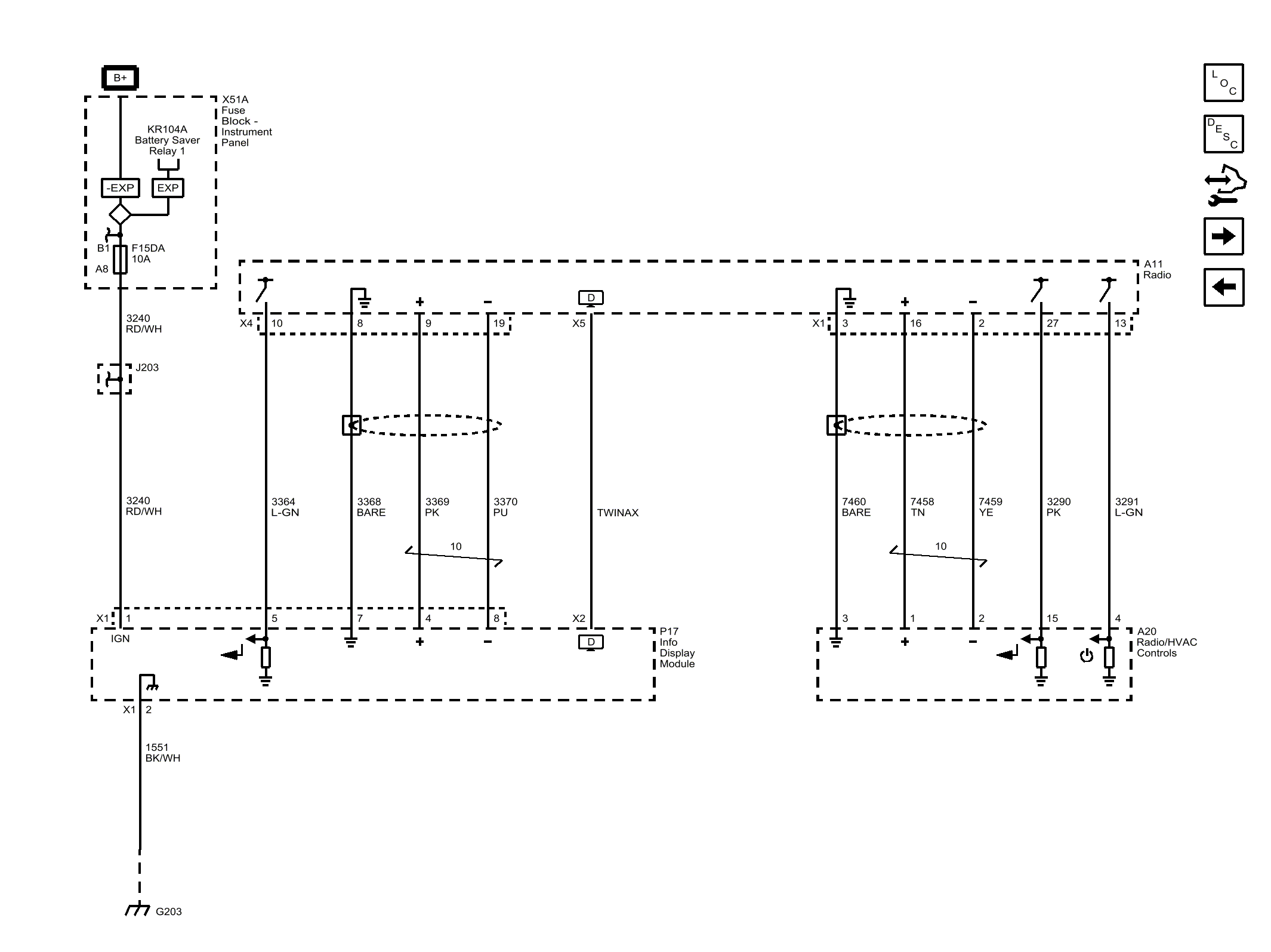

Fig 1: Radio Display (UHQ or UFU)
GM3804294Courtesy of GENERAL MOTORS COMPANY
