Remote Control Door Lock Receiver Replacement (With UFL)

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

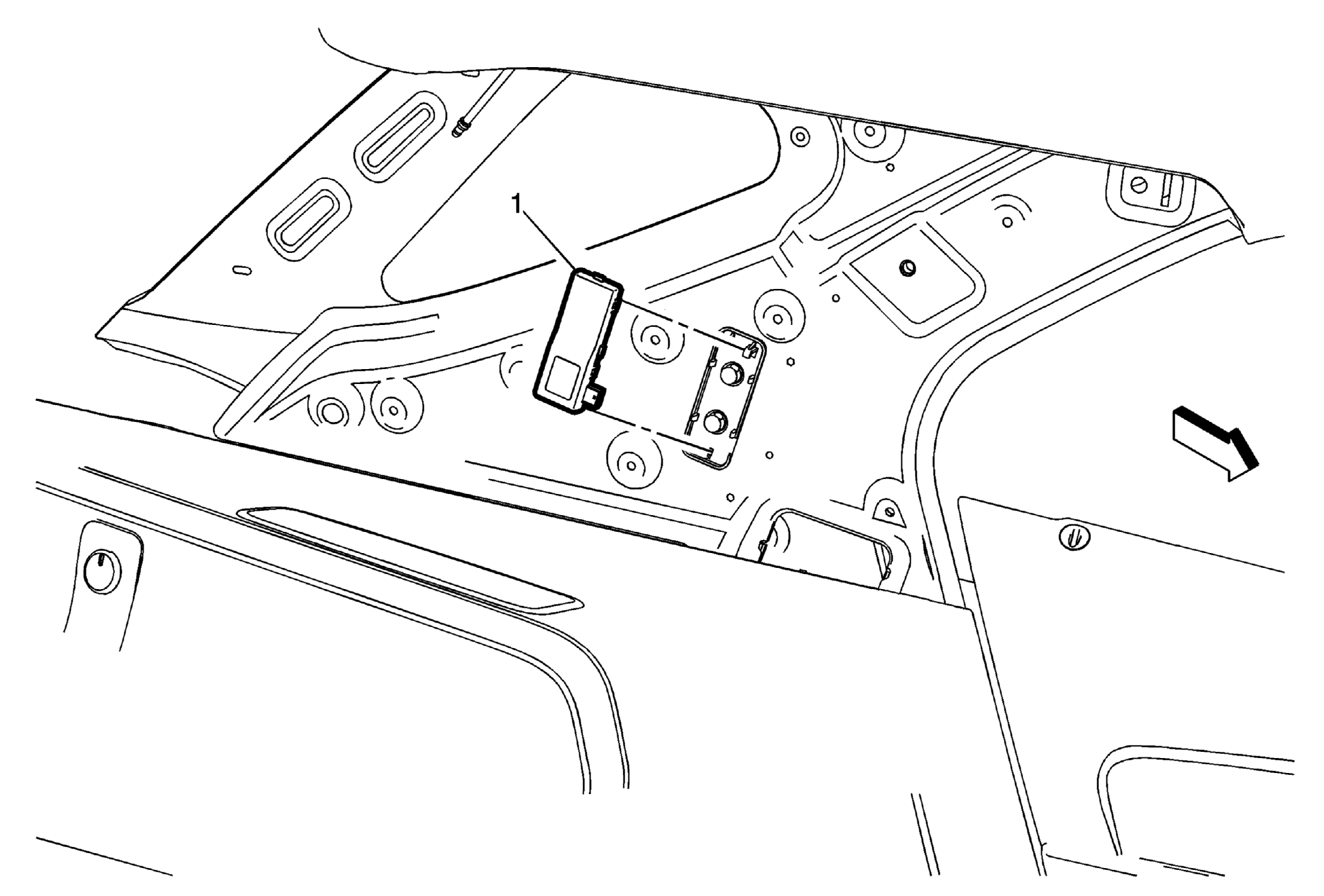

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter window trim finish panel - left side. Refer to Quarter Window Trim Finish Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the bracket. For programming and set up, refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove the quarter window trim finish panel - left side. Refer to Quarter Window Trim Finish Panel Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the receiver from the bracket.
For programming and set up, refer to Control Module References
