Radio and Telephone Control Switch Replacement (NP5)

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

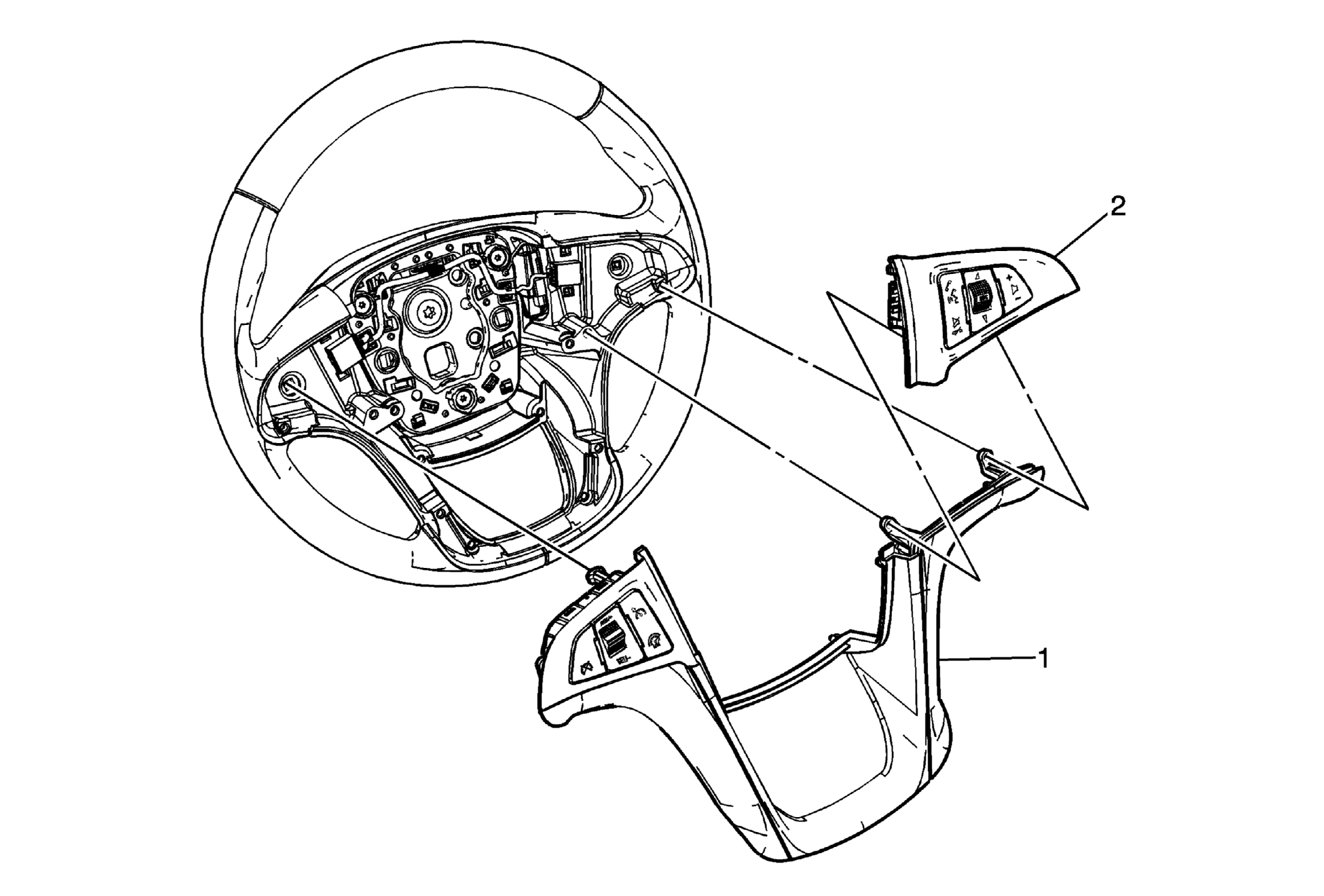

Fig 1: Radio And Telephone Control Switch (NP5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Spoke Cover
2	Radio and Telephone Control Switch Assembly Procedure Use flat bladed tool to release the switch from steering wheel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Spoke Cover

Radio and Telephone Control Switch Assembly

Procedure

Use flat bladed tool to release the switch from steering wheel.
Disconnect the electrical connector.
