Radio Front Center Speaker Replacement

WARNING: This page is about a different car, the 2012 GMC Terrain and 2012 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

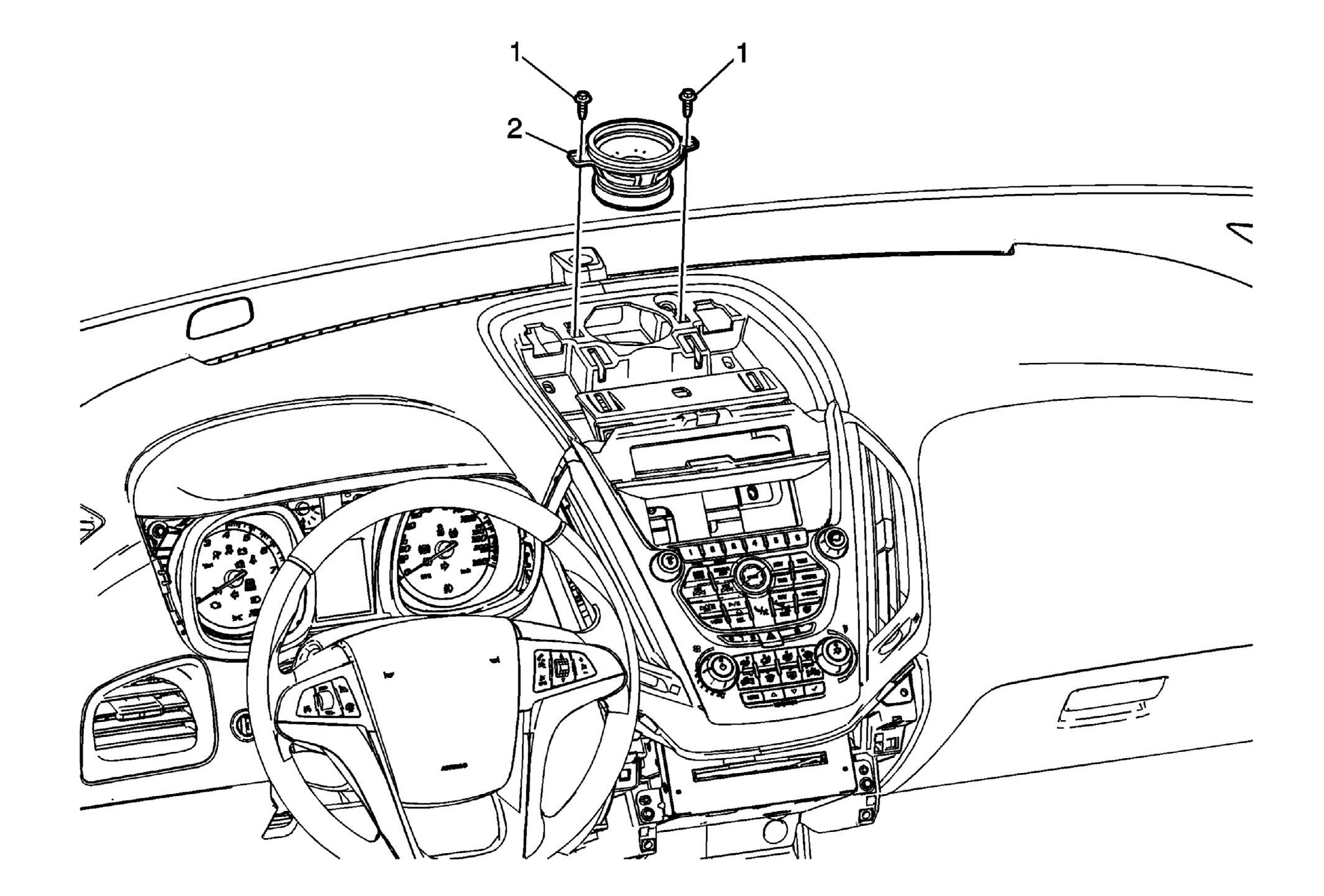

Fig 1: Radio Front Center Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement (Equinox) , Instrument Panel Center Compartment Replacement (Terrain) , or the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement (Terrain) , Instrument Panel Upper Center Trim Panel Replacement (Equinox) .
1	Radio Front Center Speaker Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Center Speaker Assembly Procedure Disconnect the electrical connector.
