Heater and Air Conditioning Control Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

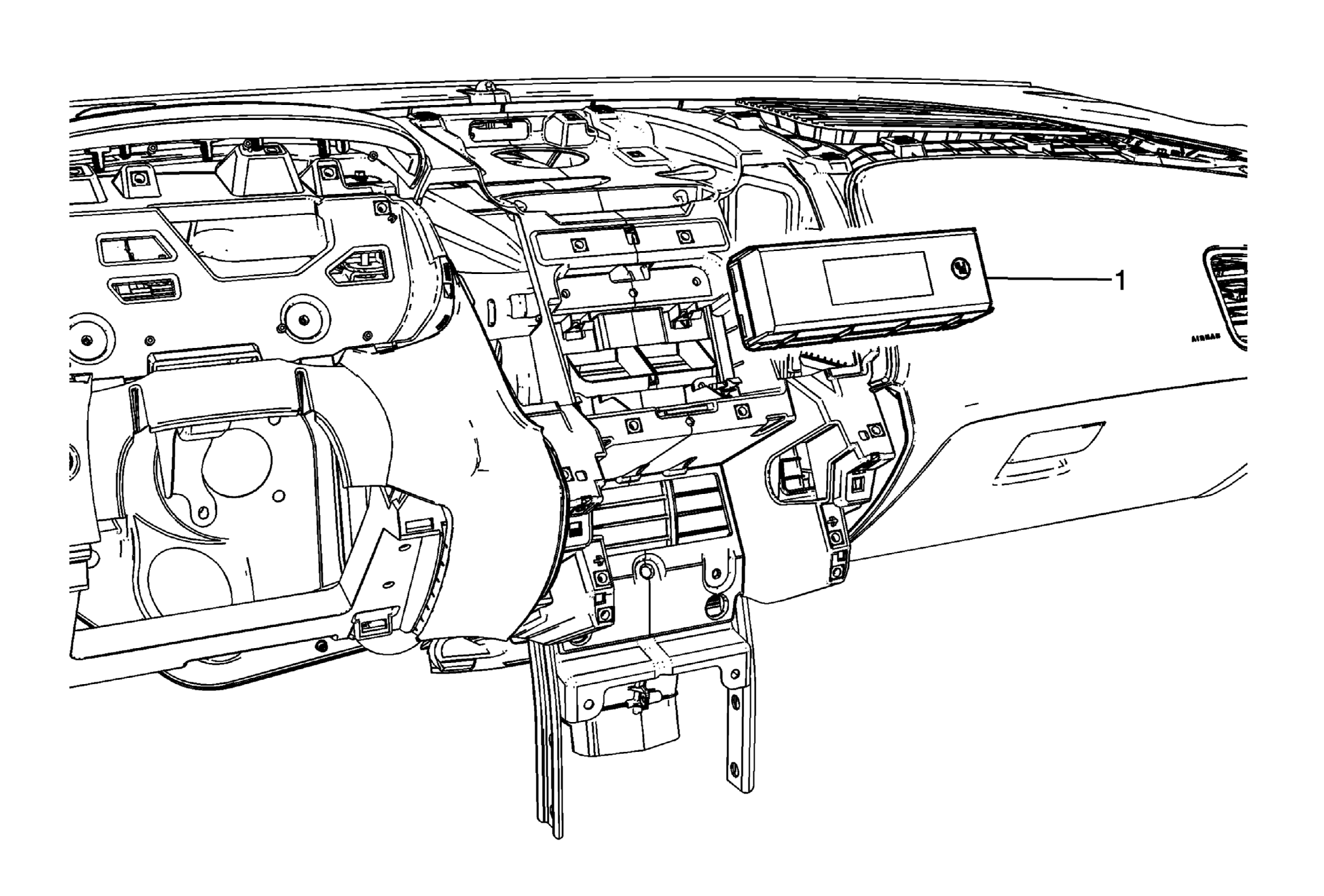

Fig 1: Heater And Air Conditioning Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim. Refer to Instrument Panel Upper Trim Panel Replacement (Equinox)Instrument Panel Upper Trim Panel Replacement (Terrain) .
1	Heater and Air Conditioning Control Procedure Disconnect the control harness electrical connector. Program the heater and air conditioning control. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel upper trim. Refer to Instrument Panel Upper Trim Panel Replacement (Equinox)Instrument Panel Upper Trim Panel Replacement (Terrain) .

Heater and Air Conditioning Control

Procedure

Disconnect the control harness electrical connector.
Program the heater and air conditioning control. Refer to Control Module References .
