Module Power, Grounds, and Subsystem References (1 of 4) Wiring Schematics
Module Power, Grounds, and Subsystem References (1 of 4) Wiring Schematics

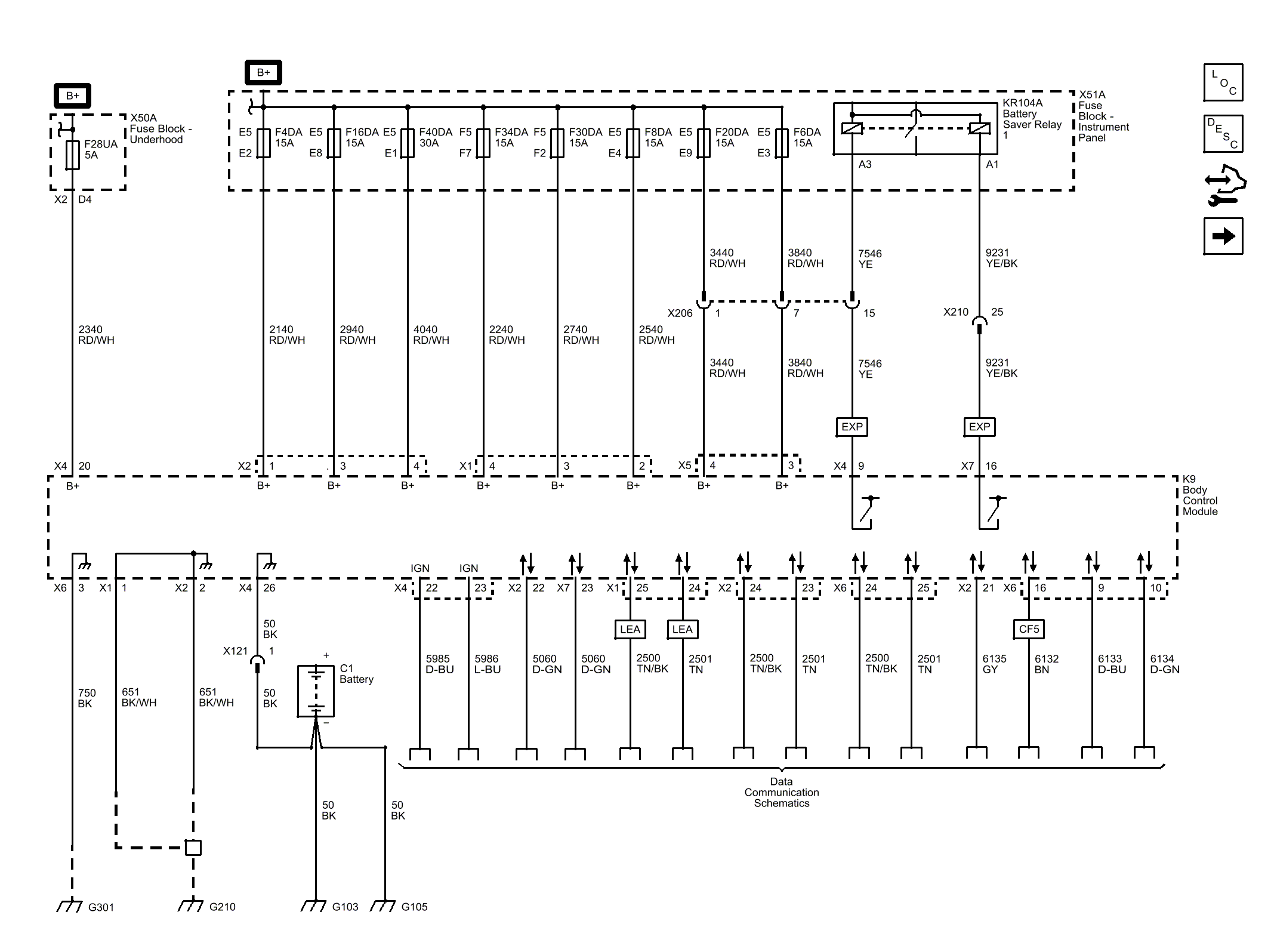

Fig 1: Module Power, Grounds, and Subsystem References (1 of 4) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
