Multimedia Player Interface Module Replacement

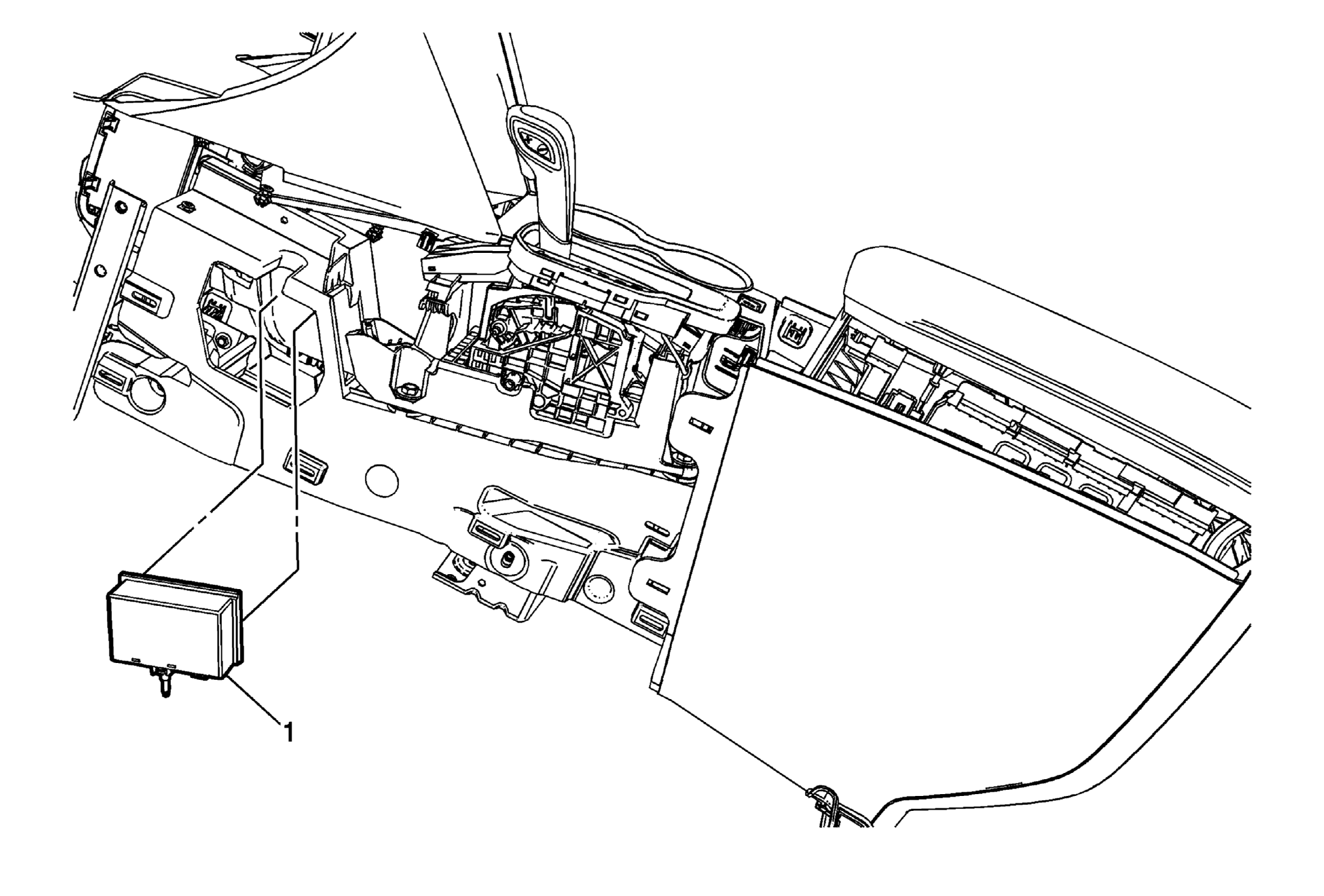

Fig 1: Multimedia Player Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left front floor lower console side finish cover. Refer to Front Floor Lower Console Side Finish Cover Replacement - Left Side (Terrain) , Front Floor Lower Console Side Finish Cover Replacement - Left Side (Equinox)
1	Multimedia Player Interface Module Procedure Slide the module upwards after disengaging retaining clips. Disconnect the electrical connectors.

Callout

Component Name

Multimedia Player Interface Module

Procedure
