Communication Interface Module Replacement

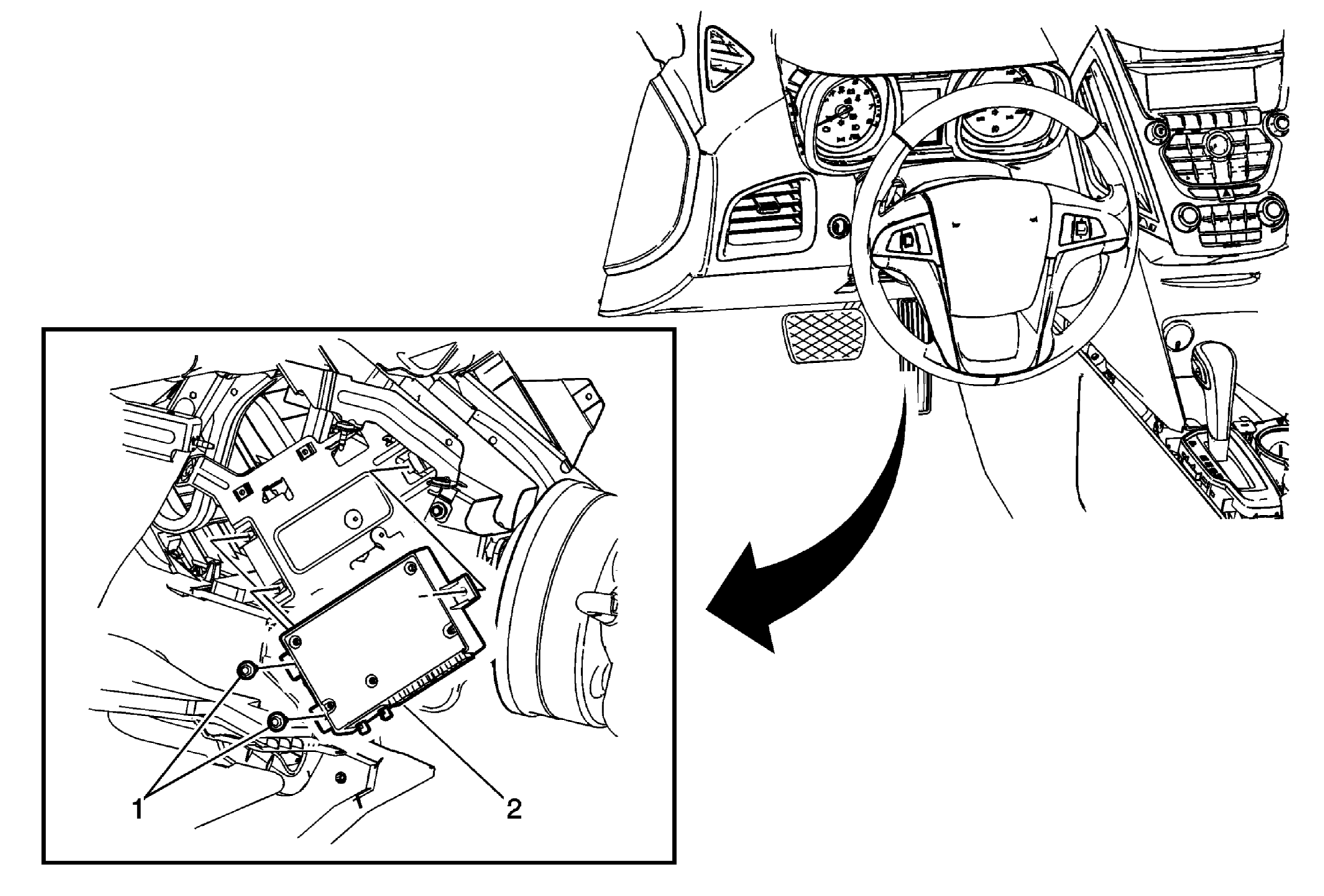

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) , Driver Knee Bolster Reinforcement Replacement (Terrain)
1	Communication Interface Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Communication Interface Module Procedure Disconnect the electrical connections. If replacing the communication interface module be sure to transfer bluetooth antenna, if equipped. For programming and set up procedures, refer to Control Module References

Callout

Component Name

Communication Interface Module Bolt (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Communication Interface Module

Procedure

Disconnect the electrical connections.
If replacing the communication interface module be sure to transfer bluetooth antenna, if equipped.
For programming and set up procedures, refer to Control Module References
