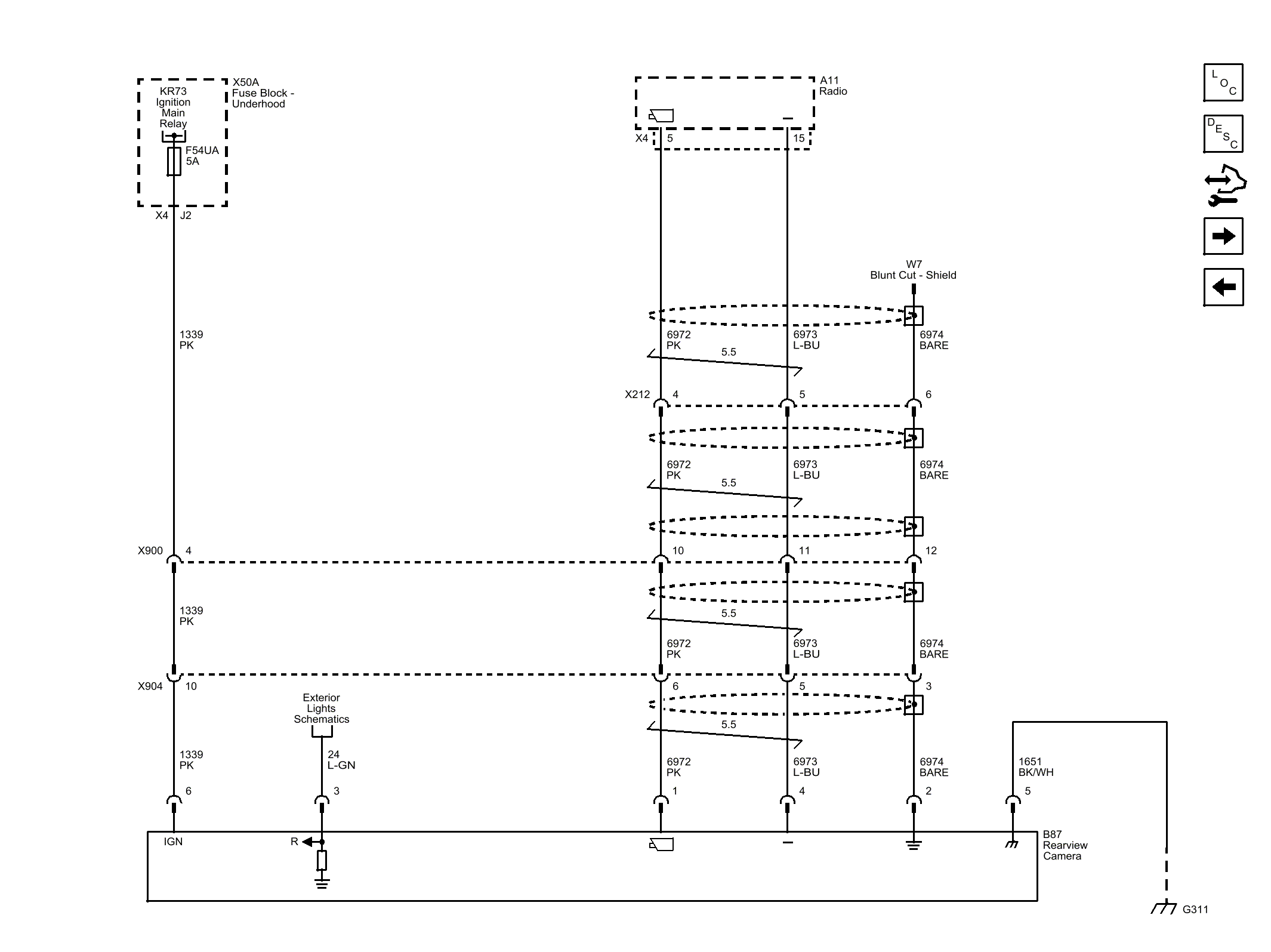

Home >> GMC >> 2014 >> Terrain Denali, 4D Utility >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Object Detection System And Pedestrian Protection System >> Schematic Wiring Diagrams >> Object Detection System Wiring Schematics >> Rearview Camera (UVC) Wiring Schematics
