Rear Parking Assist (UD7) Wiring Schematics

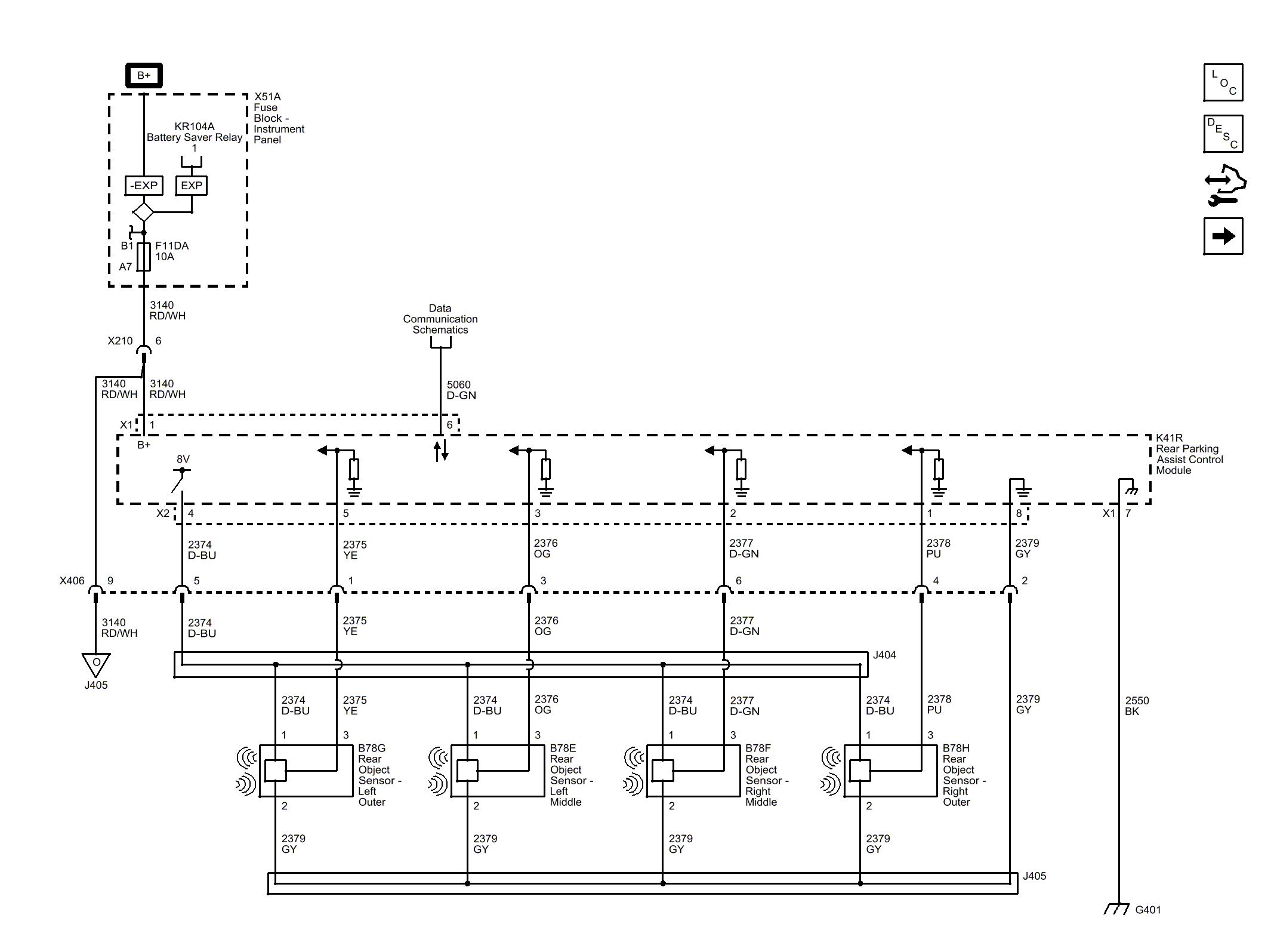

Fig 1: Rear Parking Assist (UD7) Wiring Schematics

GM3424631

Courtesy of GENERAL MOTORS COMPANY
