Removal Procedure

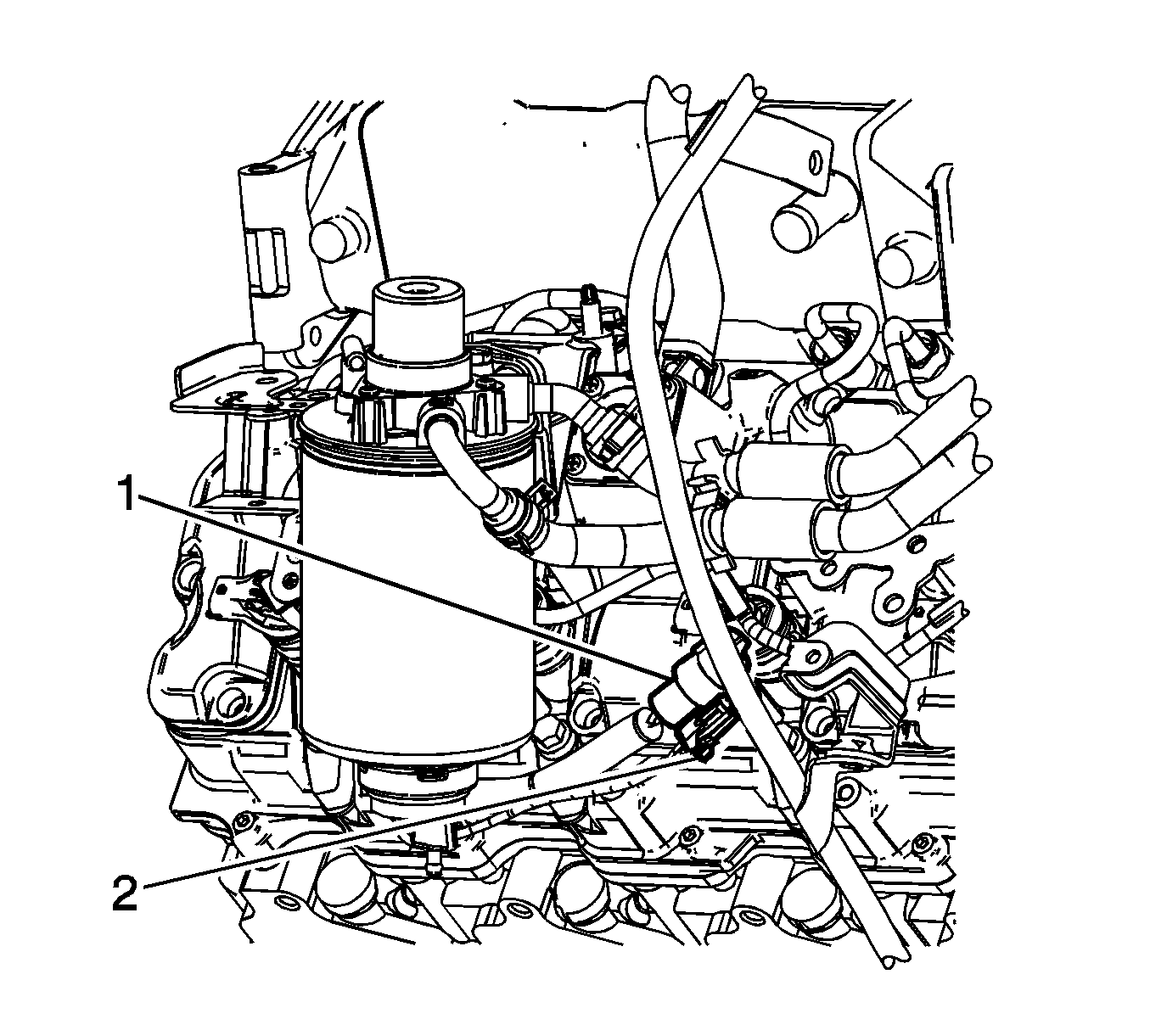

    Fig 1: View Of Fuel Sensor Wiring Pigtail & Connector
    GM1871640Courtesy of GENERAL MOTORS COMPANY
  1. Remove the fuel filter. Refer to Fuel Filter Replacement .
  2. Disconnect the water in fuel sensor wiring pigtail (2) from the engine wiring harness electrical connector.

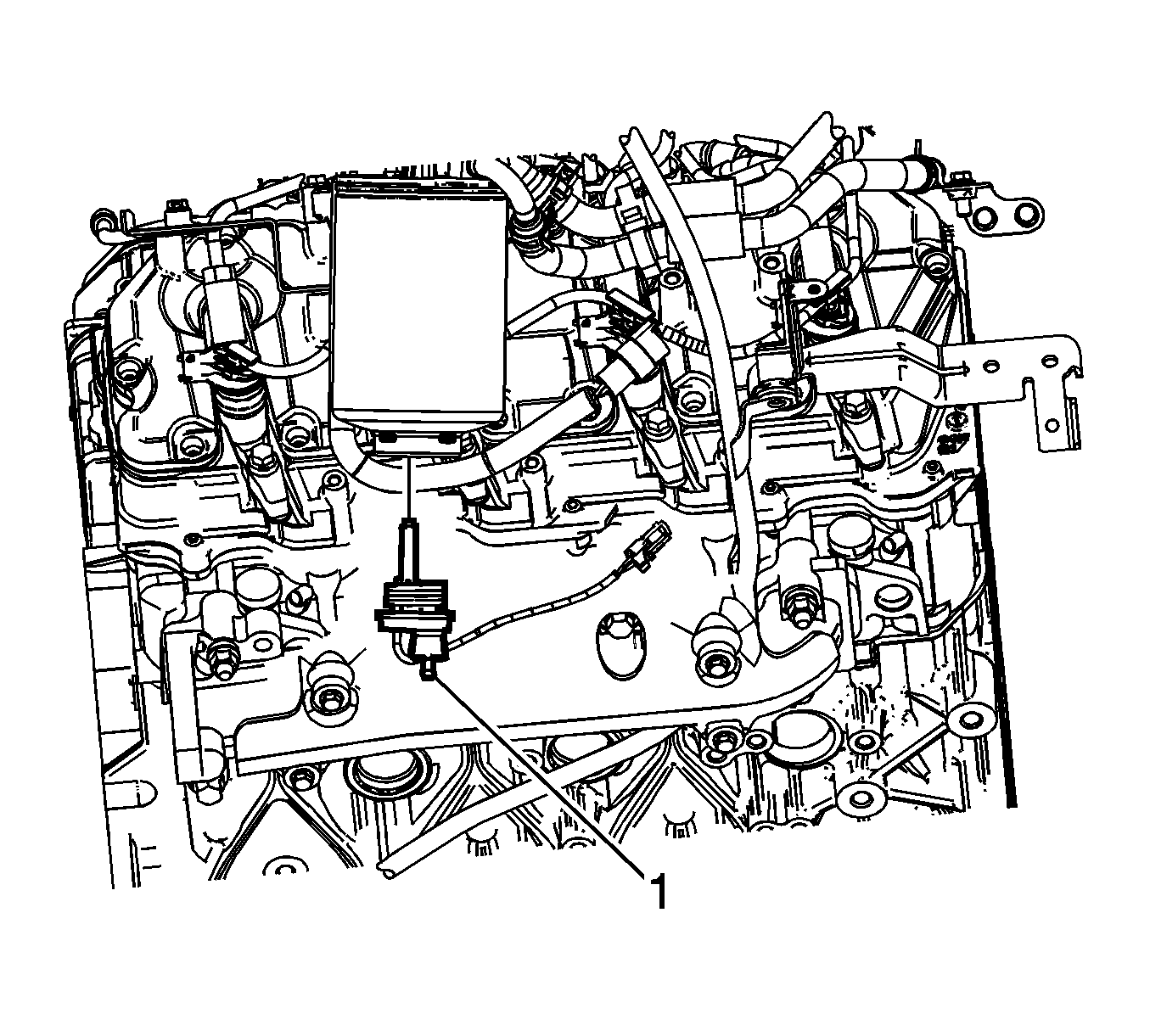

    3. Fig 2: View Of Water In Fuel Sensor
    GM1871744Courtesy of GENERAL MOTORS COMPANY
  3. Remove the water in fuel sensor (1) from the fuel filter.
