Turbocharger Vane Position Sensor Replacement

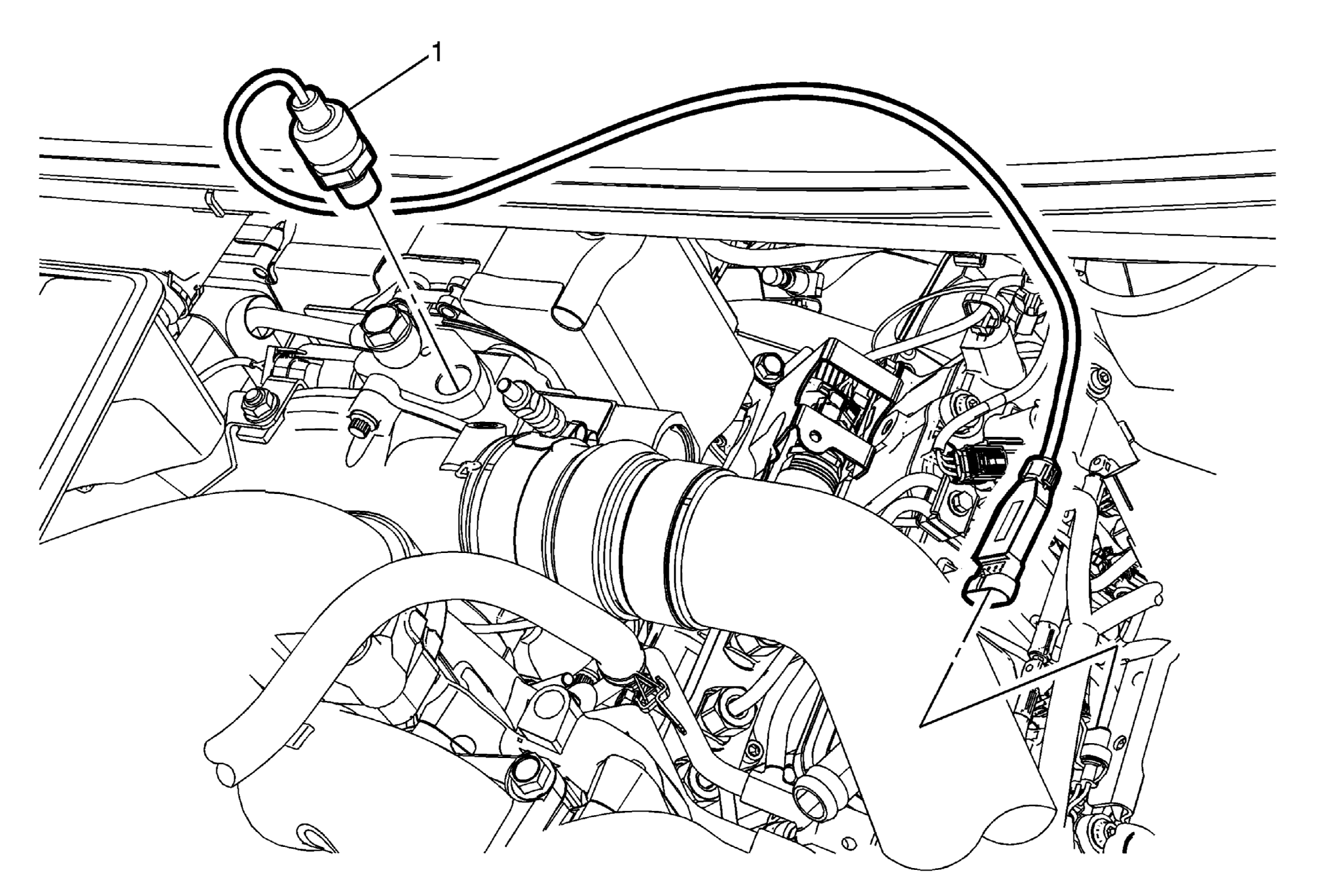

Fig 1: Turbocharger Vane Position Sensor
GM2410263Courtesy of GENERAL MOTORS COMPANY
Turbocharger Vane Position Sensor Replacement

Callout Component Name
1 Turbocharger Vane Position Sensor
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Disconnect the turbocharger vane position sensor harness connector.
  2. Perform the turbocharger learn procedure. Refer to Turbocharger Learn .

Tighten
23 N.m (17 lb ft)
