Throttle Body Assembly Replacement

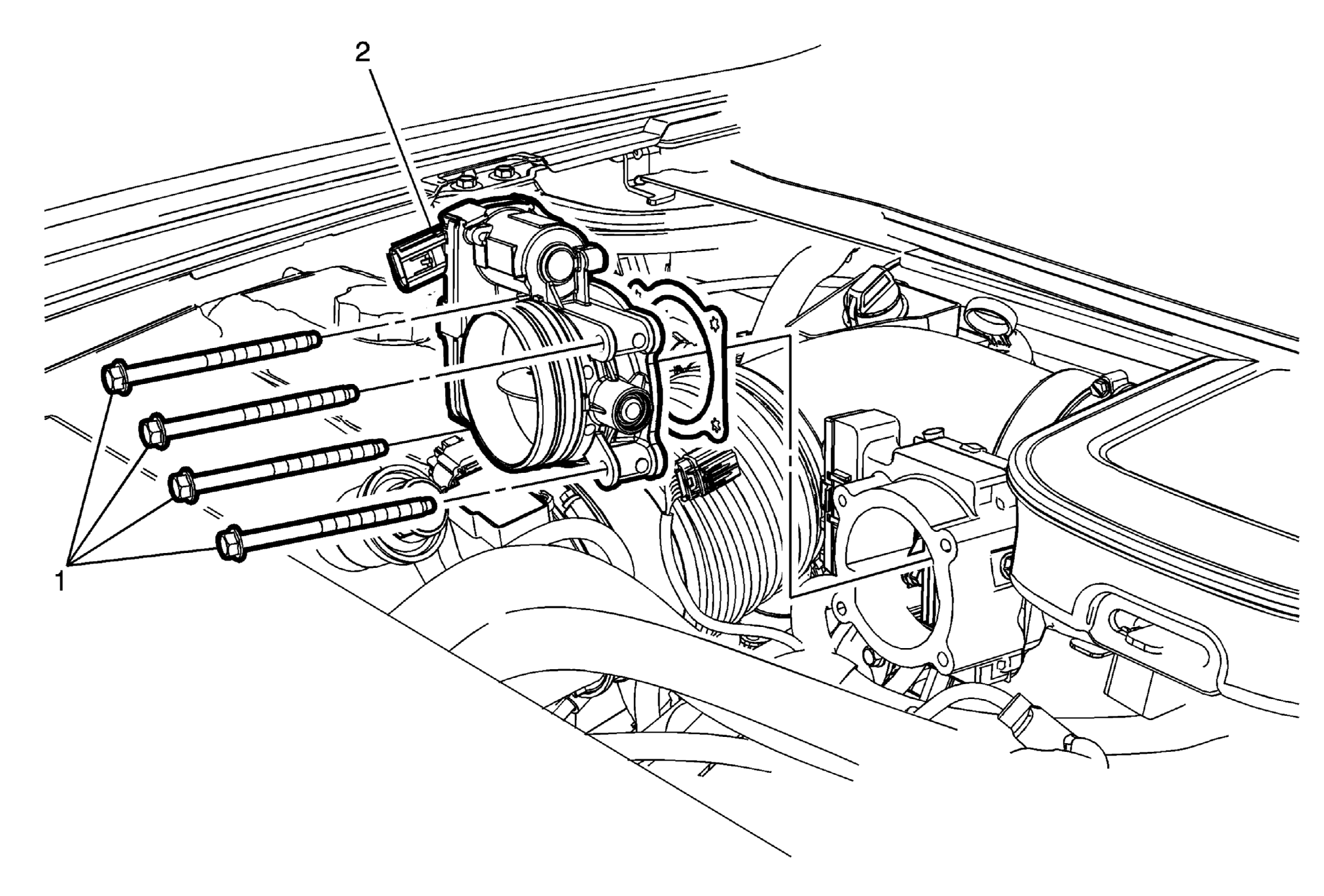

Fig 1: Identifying Throttle Body And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the charge air cooler outlet duct from the throttle body. Refer to Charge Air Cooler Outlet Pipe Replacement .
1	Throttle Body Assembly Bolt CAUTION: Refer to Fastener Caution . Tighten (10 N.m (89 lb in)
2	Throttle Body Assembly Procedure Disconnect the throttle body harness connector. Install a NEW throttle body gasket. If the scan tool DPF Soot Mass is less than 30 grams, enable the DPF. Refer to Diesel Particulate Filter (DPF) Regeneration Enable . If the scan tool DPF Soot Mass is 30 grams or greater, refer to Diesel Particulate Filter (DPF) Service Regeneration .

Callout

Component Name

Preliminary Procedure
Disconnect the charge air cooler outlet duct from the throttle body. Refer to Charge Air Cooler Outlet Pipe Replacement .

Throttle Body Assembly Bolt

CAUTION:

Tighten
(10 N.m (89 lb in)

Throttle Body Assembly

Procedure

Disconnect the throttle body harness connector.
Install a NEW throttle body gasket.
If the scan tool DPF Soot Mass is less than 30 grams, enable the DPF. Refer to Diesel Particulate Filter (DPF) Regeneration Enable .
If the scan tool DPF Soot Mass is 30 grams or greater, refer to Diesel Particulate Filter (DPF) Service Regeneration .
