Installation Procedure

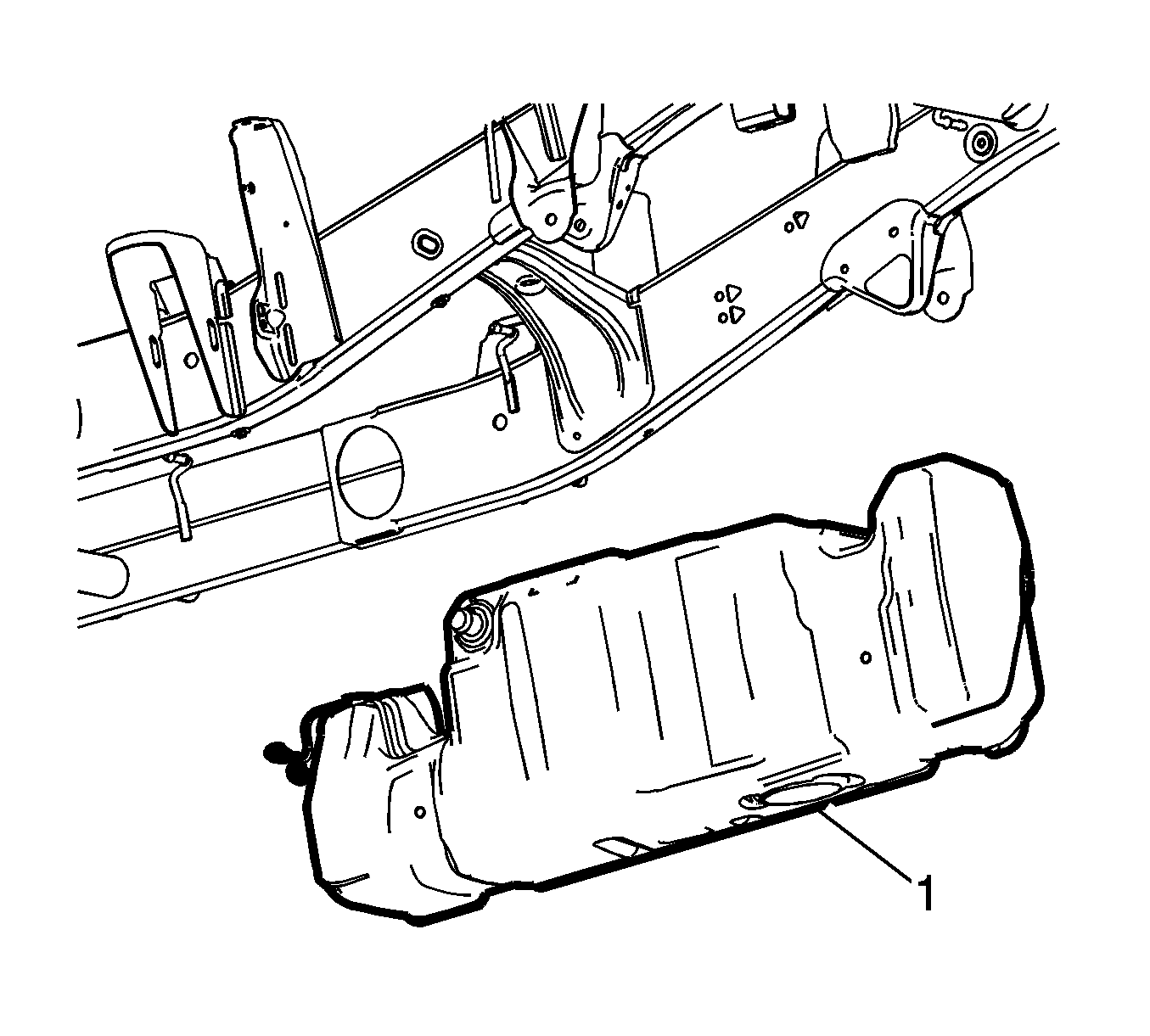

    Fig 1: Identifying Fuel Tank
    GM2407876Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank (1).

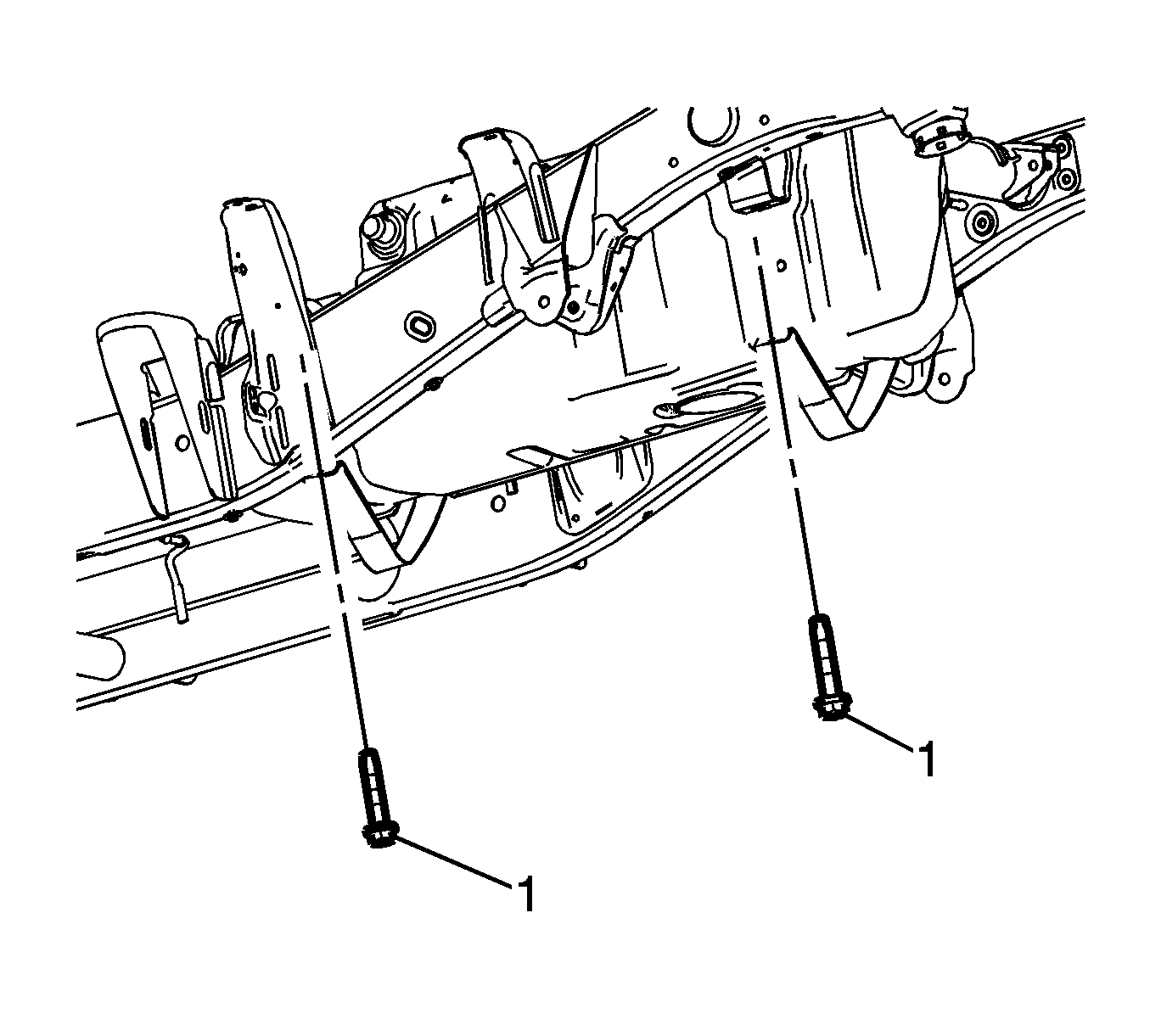

    2. Fig 2: Identifying Fuel Tank Strap Bolts
    GM2407853Courtesy of GENERAL MOTORS COMPANY
  2. Support the fuel tank with a suitable jack.
  3. Connect the fuel sender electrical connector.
    CAUTION:

    Refer to Fastener Caution .

  4. Install the fuel tank strap bolts (1) and tighten to 40 N.m (30 lb ft).

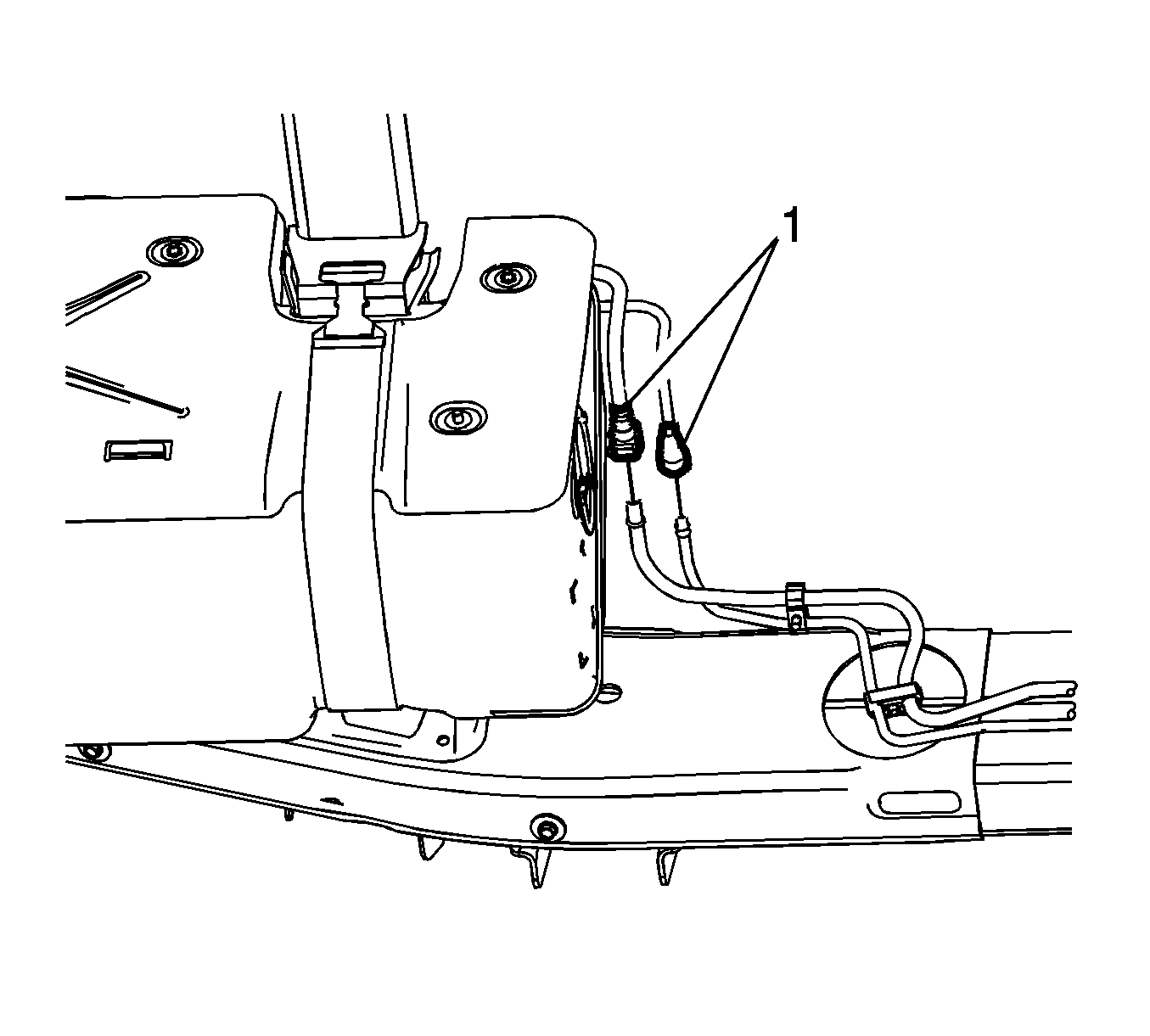

    5. Fig 3: Identifying Fuel Feed And Return Pipes
    GM2407843Courtesy of GENERAL MOTORS COMPANY
  5. Connect the filler tube to the tank. Refer to Fuel Tank Filler Hose Replacement (Pickup) , Fuel Tank Filler Hose Replacement (Cab/Chassis) .
  6. Install the fuel tank shield. Refer to Fuel Tank Shield Replacement .
