Exhaust Temperature Sensor Replacement - Position 1

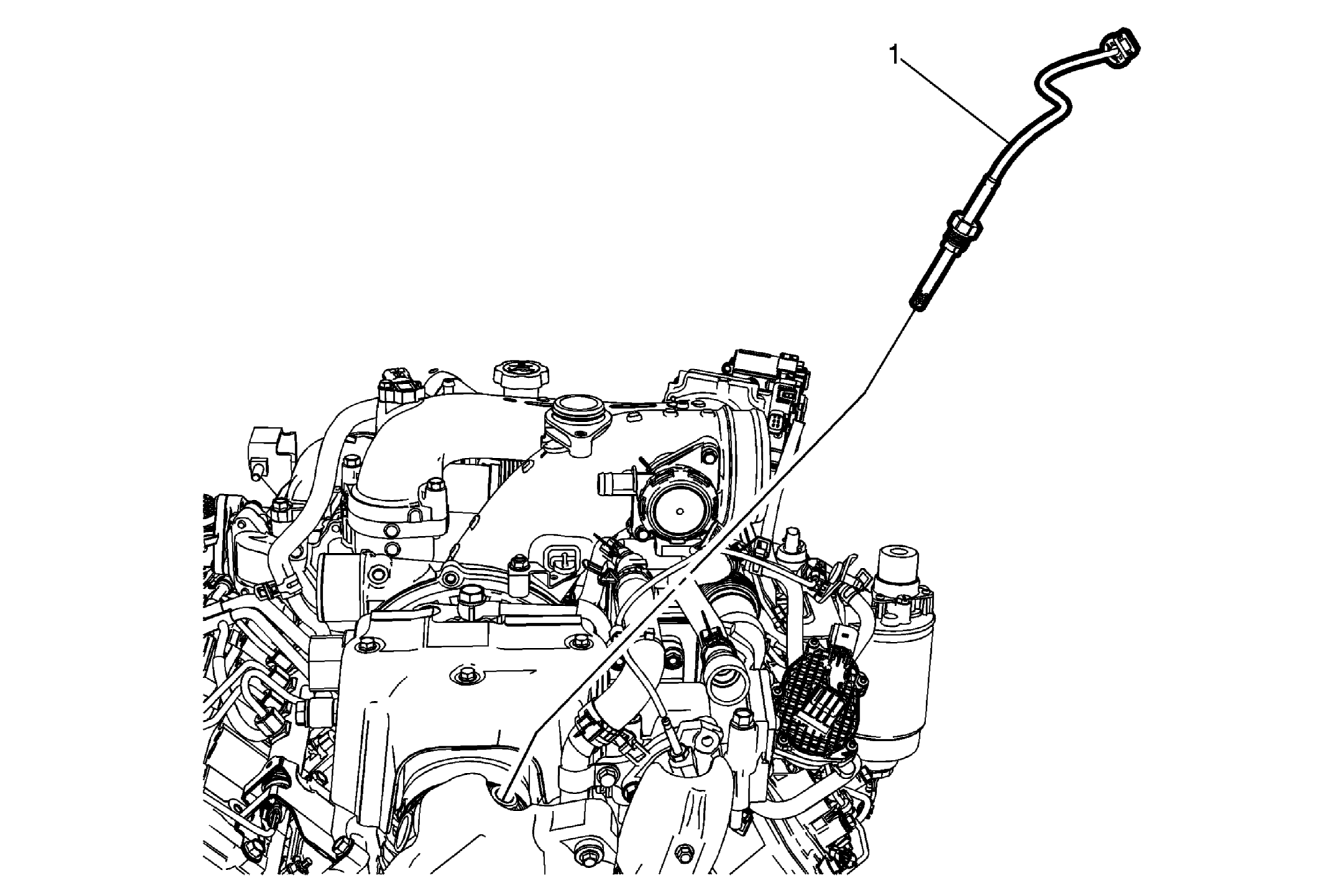

Fig 1: Identifying Exhaust Temperature Sensor - Position 1

GM2410233

Courtesy of GENERAL MOTORS COMPANY

Exhaust Temperature Sensor Replacement - Position 1

Callout

Component Name

1

Exhaust Temperature Sensor

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
If reinstalling the old sensor, coat the threads with anti-sieze compound. Refer to Adhesives, Fluids, Lubricants, and Sealers .
Perform the scan tool Diesel Particulate Filter (DPF) Regeneration Enable. Refer to Diesel Particulate Filter (DPF) Regeneration Enable .

Tighten
45 N.m (33 lb ft)
