Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 2

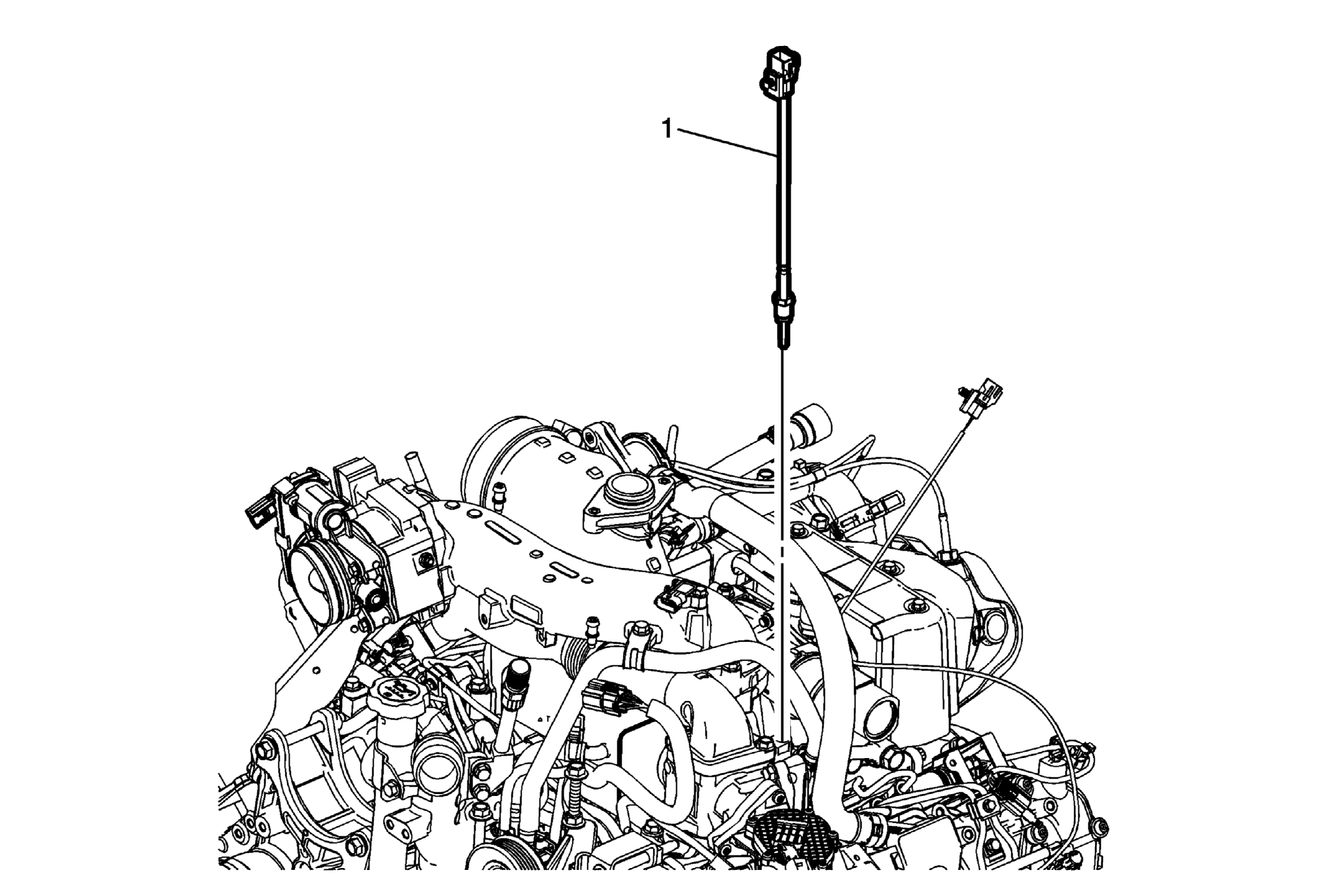

Fig 1: Identifying Exhaust Gas Recirculation Valve Temperature Sensor - Position 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Exhaust Gas Recirculation Valve Temperature Sensor CAUTION: Refer to Fastener Caution . Tighten 44 N.m (32 lb ft) Procedure Disconnect the electrical connector. If the scan tool DPF Soot Mass is less than 30 grams, enable the DPF. Refer to Diesel Particulate Filter (DPF) Regeneration Enable . If the scan tool DPF Soot Mass is 30 grams or greater, refer to Diesel Particulate Filter (DPF) Service Regeneration .

Callout

Component Name

Exhaust Gas Recirculation Valve Temperature Sensor

CAUTION:

Tighten
44 N.m (32 lb ft)

Procedure

Disconnect the electrical connector.
If the scan tool DPF Soot Mass is less than 30 grams, enable the DPF. Refer to Diesel Particulate Filter (DPF) Regeneration Enable .
If the scan tool DPF Soot Mass is 30 grams or greater, refer to Diesel Particulate Filter (DPF) Service Regeneration .
