Installation Procedure

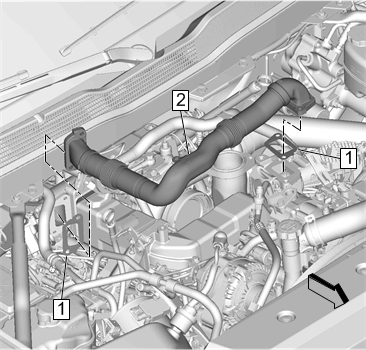

  1. Exhaust Gas Recirculation Valve Pipe Gasket (1) » Install a NEW gasket. [2x]
    GM4769749Courtesy of GENERAL MOTORS CORP.
  2. Exhaust Gas Recirculation Valve Pipe (2) » Install
  3. Hand start all of the fasteners.
    GM5421684Courtesy of GENERAL MOTORS CORP.

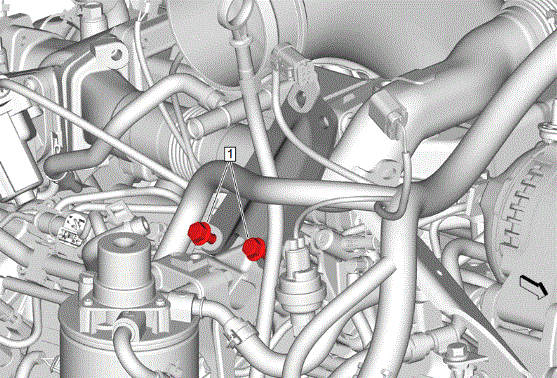

  4. Tighten the 2 fuel filter bracket upper bolts (1). Fuel Filter Bracket Replacement
    GM4769548Courtesy of GENERAL MOTORS CORP.

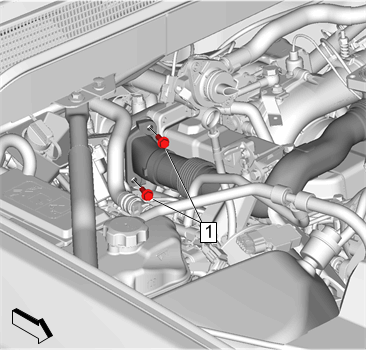

    CAUTION: Refer to Fastener Caution .
  5. Exhaust Gas Recirculation Bypass Valve Outlet Bolt (1) » Install and tighten [2x] 25 N.m (18 lb ft)
    GM4769555Courtesy of GENERAL MOTORS CORP.

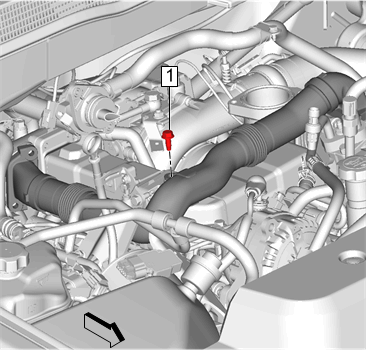

  6. Exhaust Gas Recirculation Valve Pipe Bolt (1) » Install and tighten 25 N.m (18 lb ft)
    GM4769597Courtesy of GENERAL MOTORS CORP.

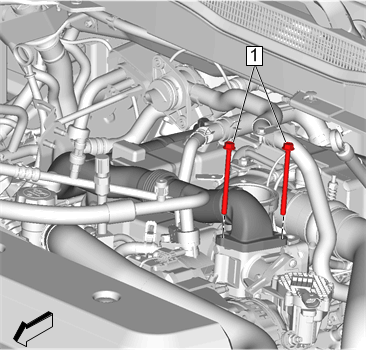

  7. Exhaust Gas Recirculation Valve Bracket Bolt (1) » Install and tighten [2x] 25 N.m (18 lb ft)
  8. Intake Manifold Tube » Install - INTAKE MANIFOLD TUBE REPLACEMENT
