Crankshaft Position Sensor Replacement

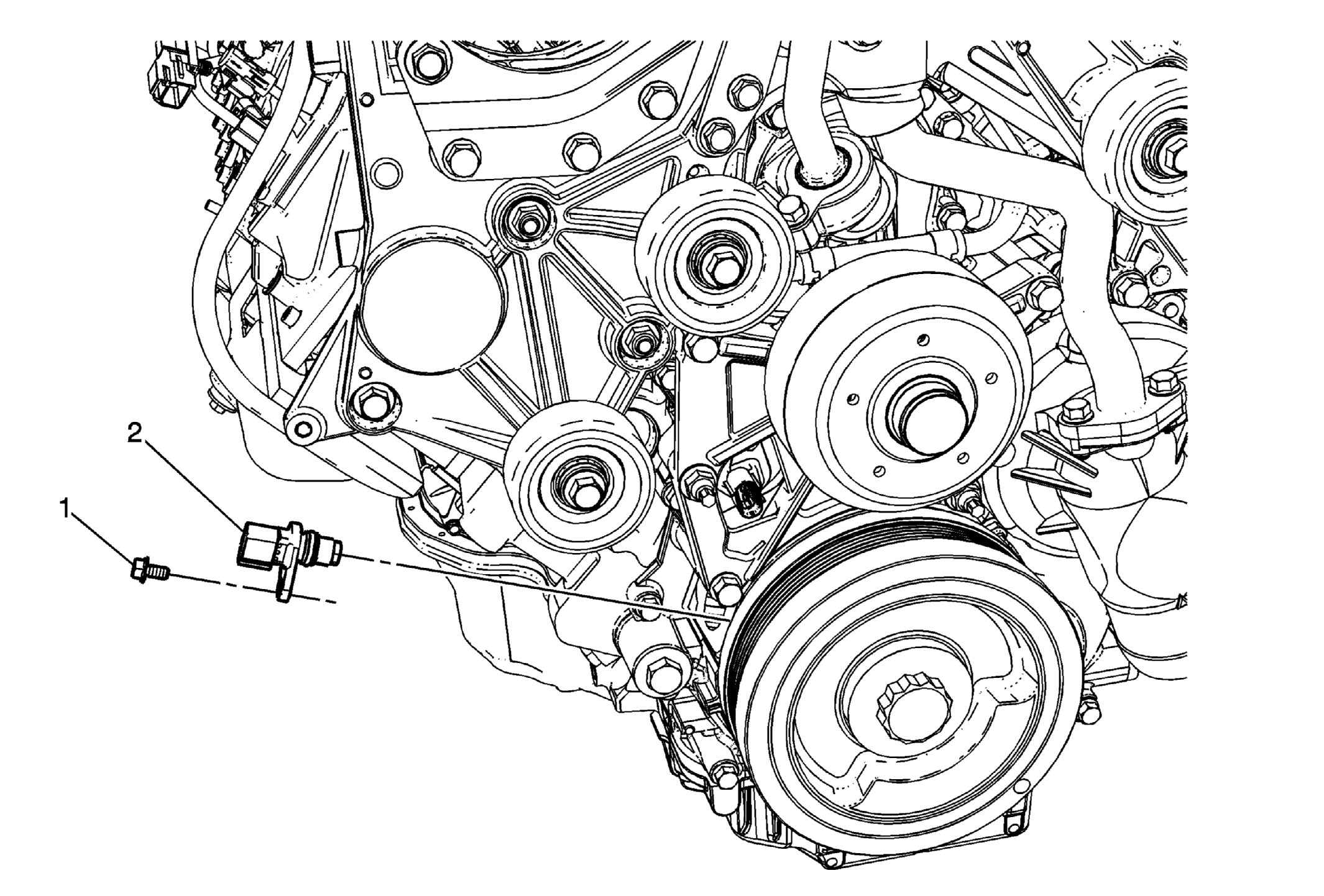

Fig 1: Identifying Crankshaft Position Sensor And Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine shield. Refer to Engine Shield Replacement
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector Perform the crankshaft position reluctor wheel learn procedure. Refer to Crankshaft Position Reluctor Wheel Learn .

Callout

Component Name

Preliminary Procedure
Remove the engine shield. Refer to Engine Shield Replacement

Crankshaft Position Sensor Fastener

CAUTION:

Tighten
10 (89 lb in)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector
Perform the crankshaft position reluctor wheel learn procedure. Refer to Crankshaft Position Reluctor Wheel Learn .
