Air Cleaner Element Replacement

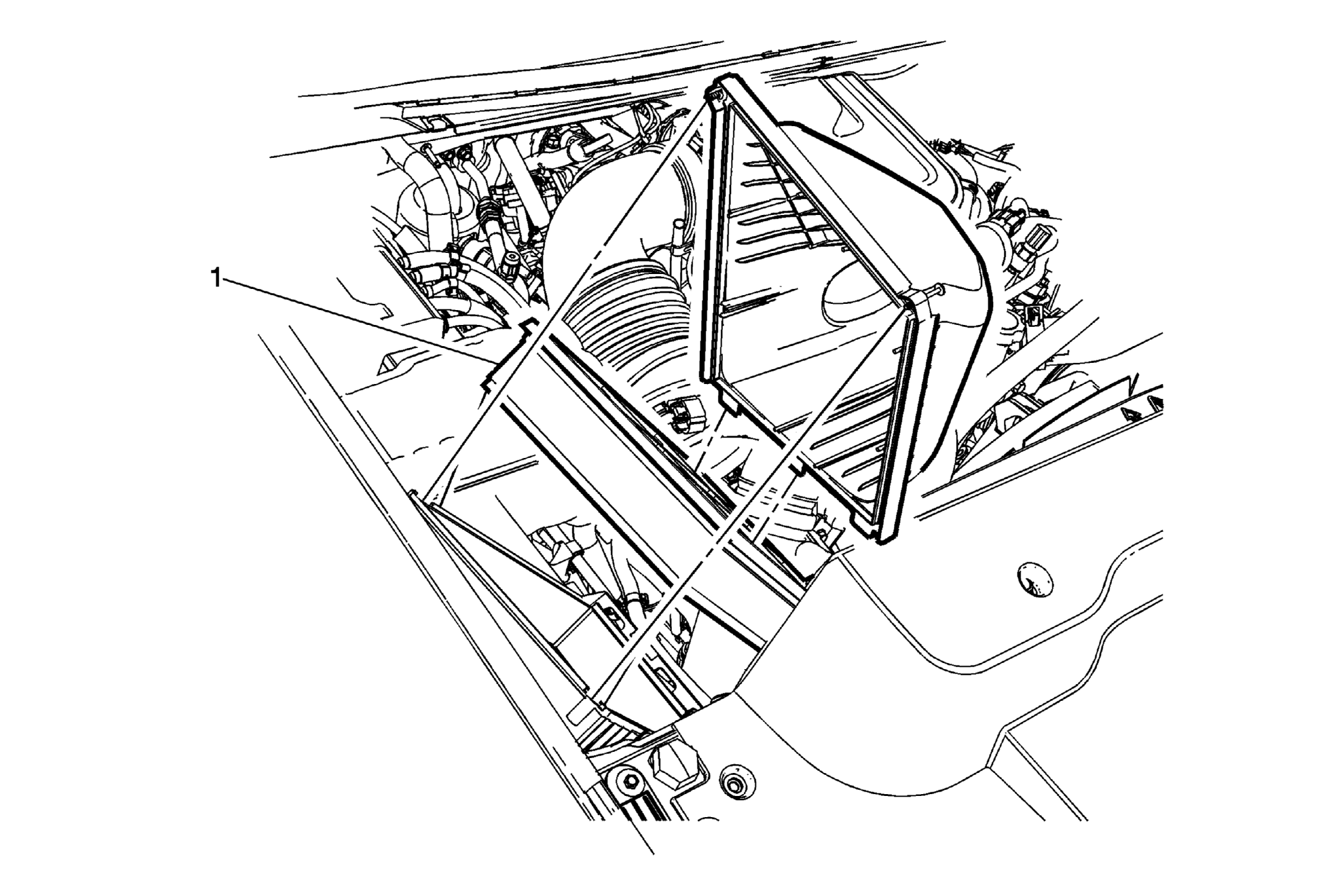

Fig 1: Identifying Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Element CAUTION: Refer to Fastener Caution . Procedure Disengage the upper Housing fasteners from the lower air cleaner housing. Disengage the upper housing tabs from the lower housing. Remove the air cleaner element from the lower housing.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Element

CAUTION:

Procedure
