Air Cleaner Assembly Replacement

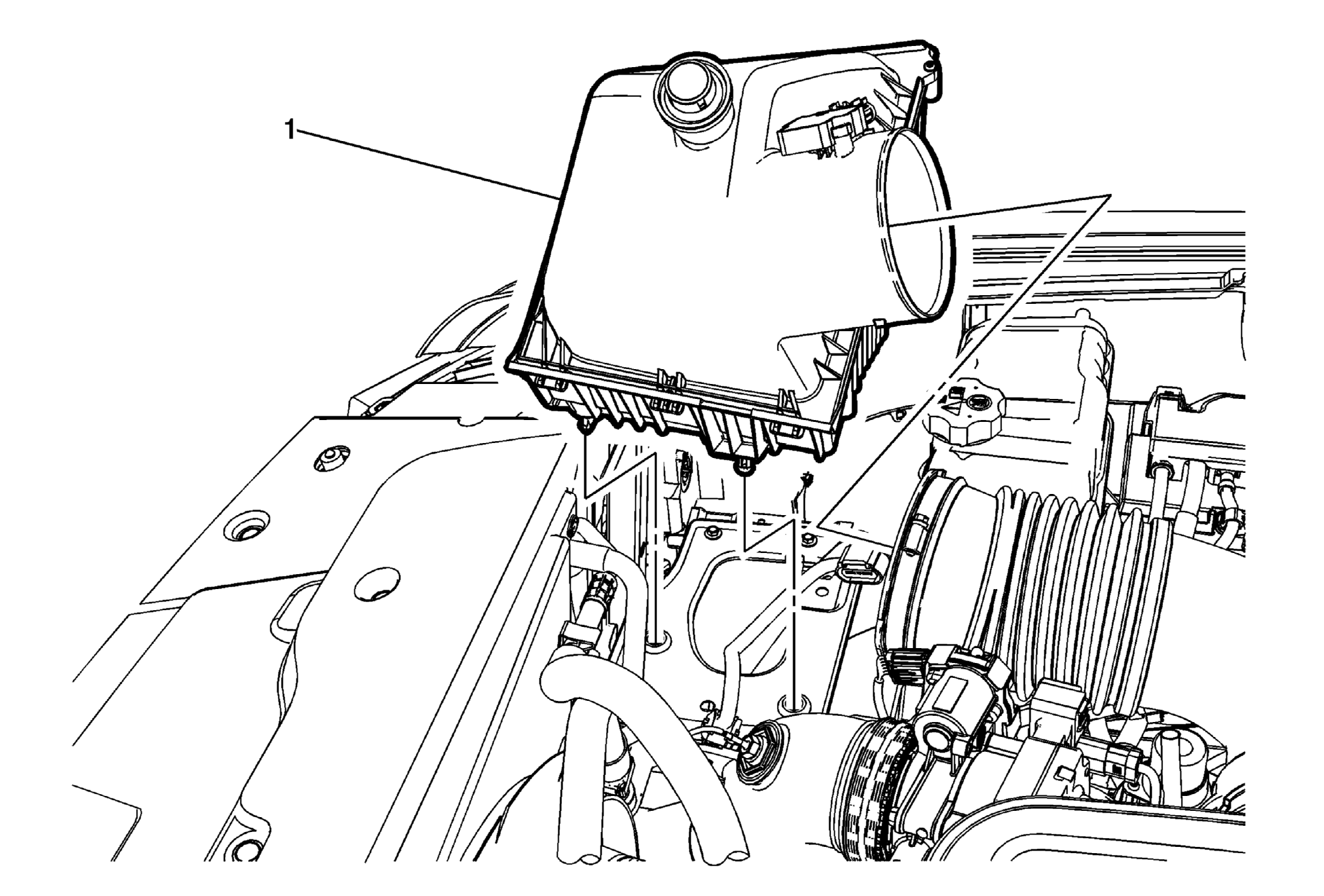

Fig 1: Identifying Air Cleaner

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Lift the air cleaner assembly upward from the air cleaner adaptor bracket grommets. If replacing the air cleaner assembly, transfer the parts as necessary

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly

Procedure

Lift the air cleaner assembly upward from the air cleaner adaptor bracket grommets.
If replacing the air cleaner assembly, transfer the parts as necessary
