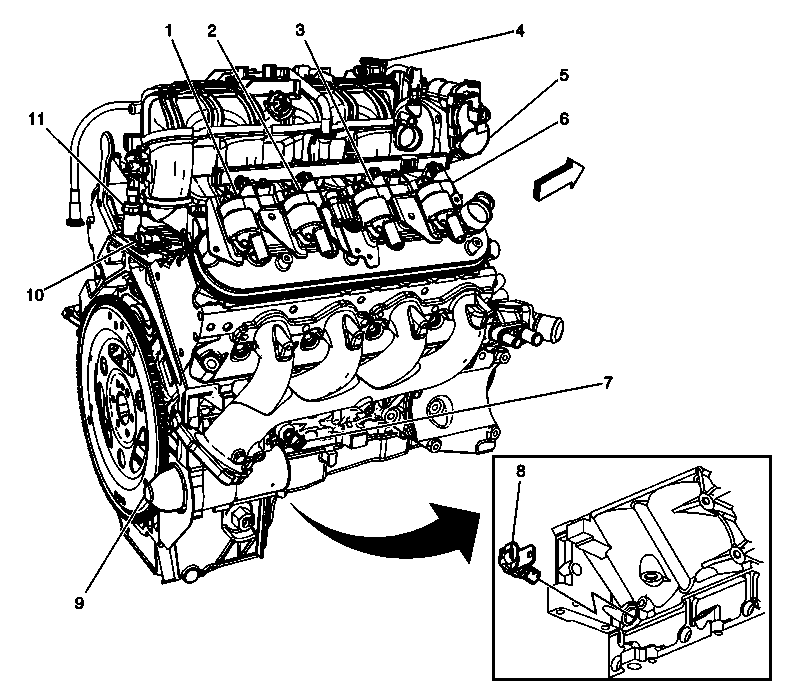

Right Side Of Engine
Right Side Of Engine
| Component Name | Callout |
|---|---|
| Ignition Coil 8 | 1 |
| Ignition Coil 6 | 2 |
| Ignition Coil 4 | 3 |
| Manifold Absolute Pressure (MAP) Sensor | 4 |
| Throttle Body | 5 |
| Ignition Coil 2 | 6 |
| Knock Sensor (KS) 2 | 7 |
| Crankshaft Position (CKP) Sensor | 8 |
| Starter Motor | 9 |
| Valve Lifter Oil Manifold (VLOM) Assembly (LC9 or LMG) | 10 |
| Engine Oil Pressure (EOP) Sensor | 11 |
