Fuse Block - Underhood Label

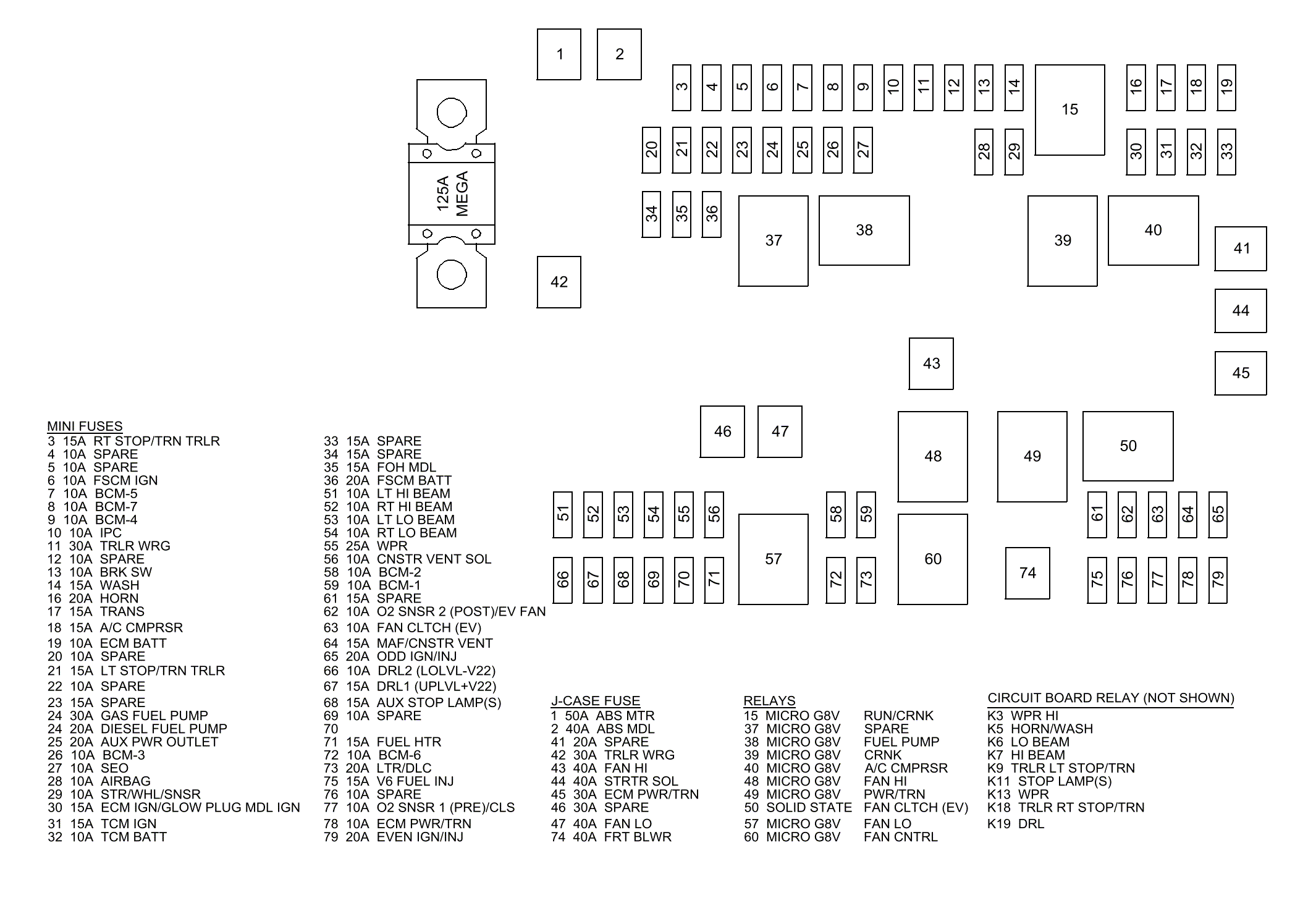

Fig 1: Fuse Block - Fuse And Relay Underhood Label

GM2832049

Courtesy of GENERAL MOTORS COMPANY
