Power, Ground, Serial Data and Traction Control

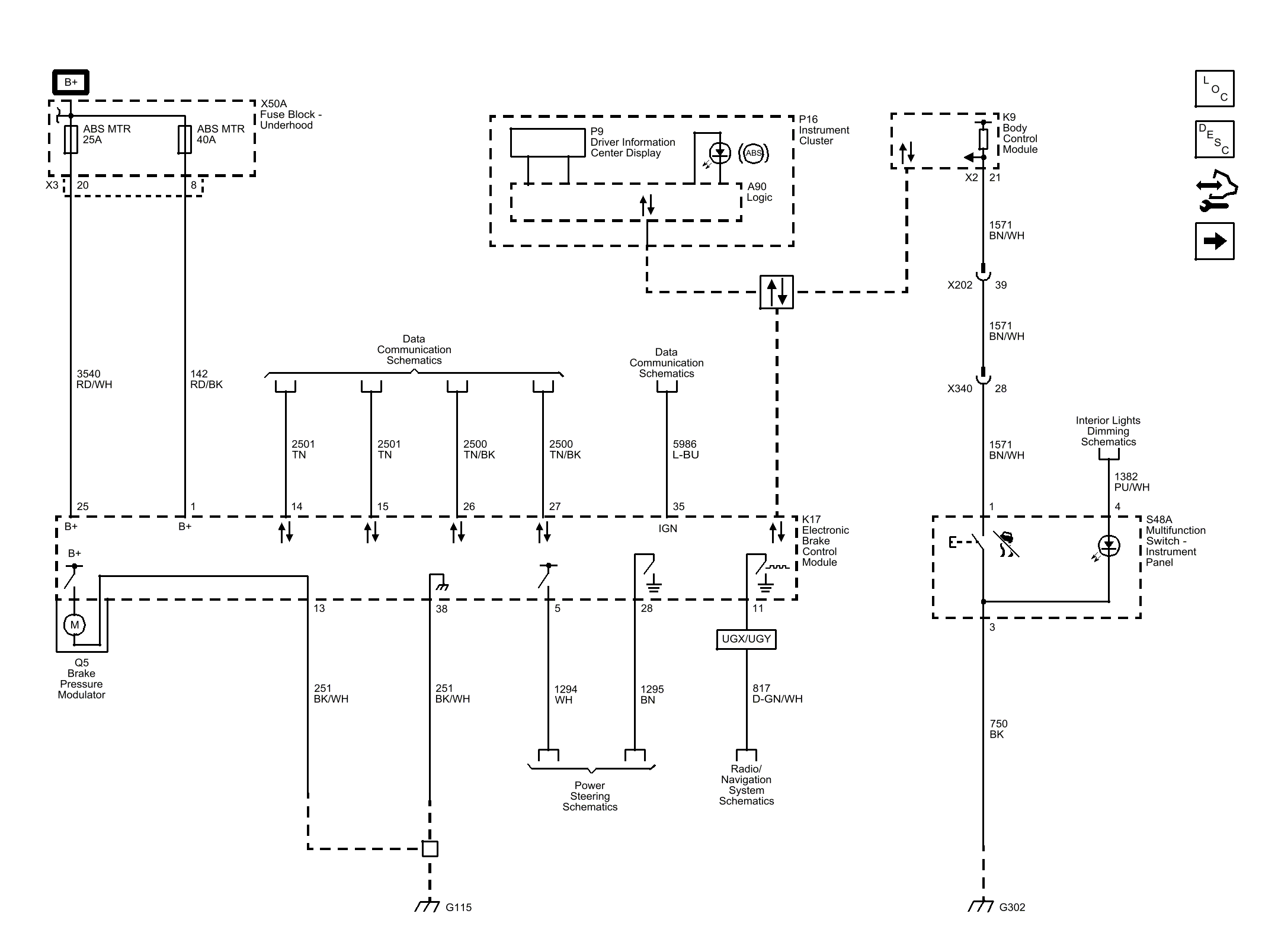

Fig 1: Power, Ground, Serial Data and Traction Control Wiring Schematics

GM3326651

Courtesy of GENERAL MOTORS COMPANY
