Starting System and Charging System Wiring Schematics: Charging

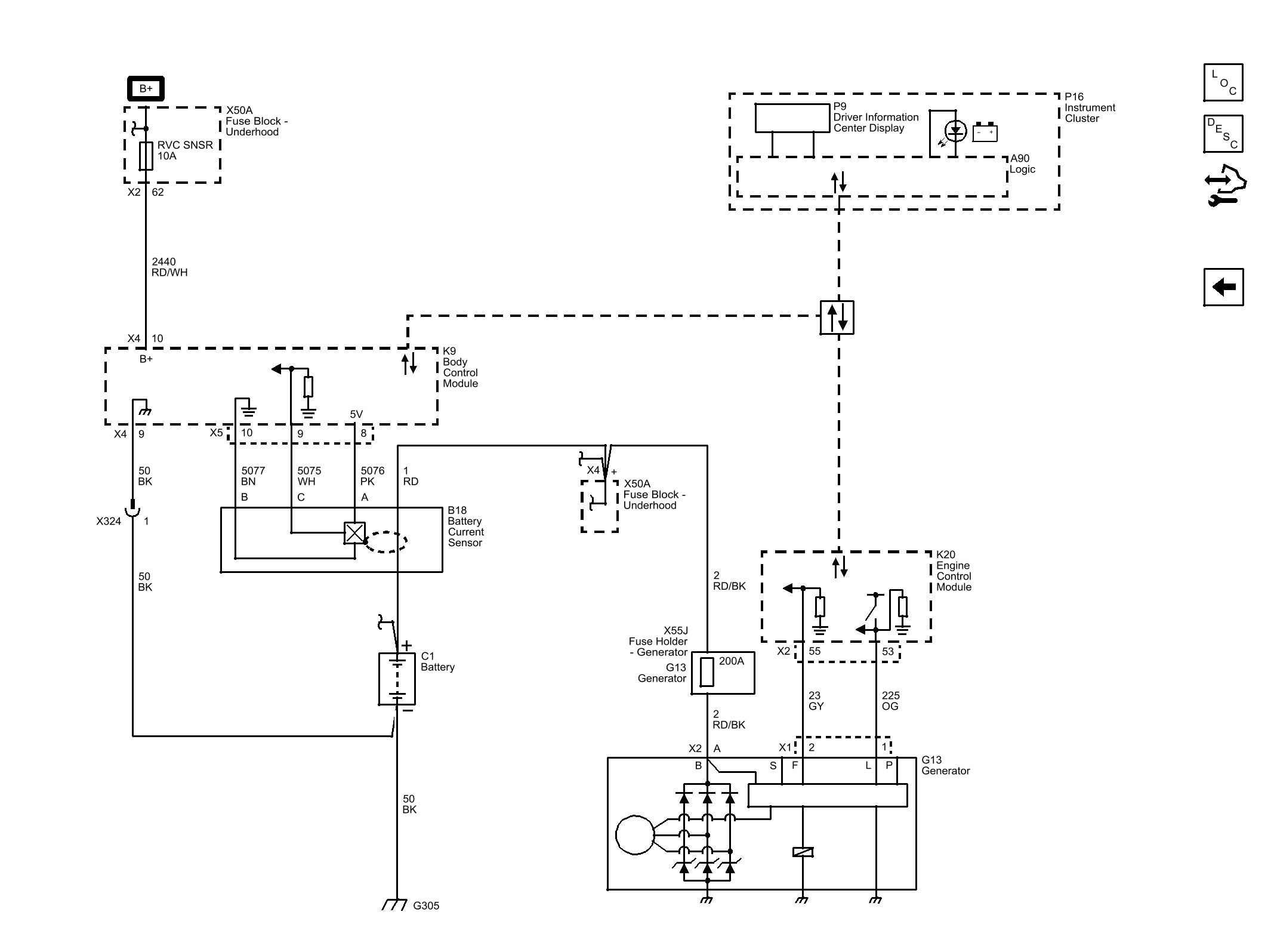

Fig 1: Charging Wiring Schematics

GM3329317

Courtesy of GENERAL MOTORS COMPANY
