GMC
>>
2013
>>
Yukon Base, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

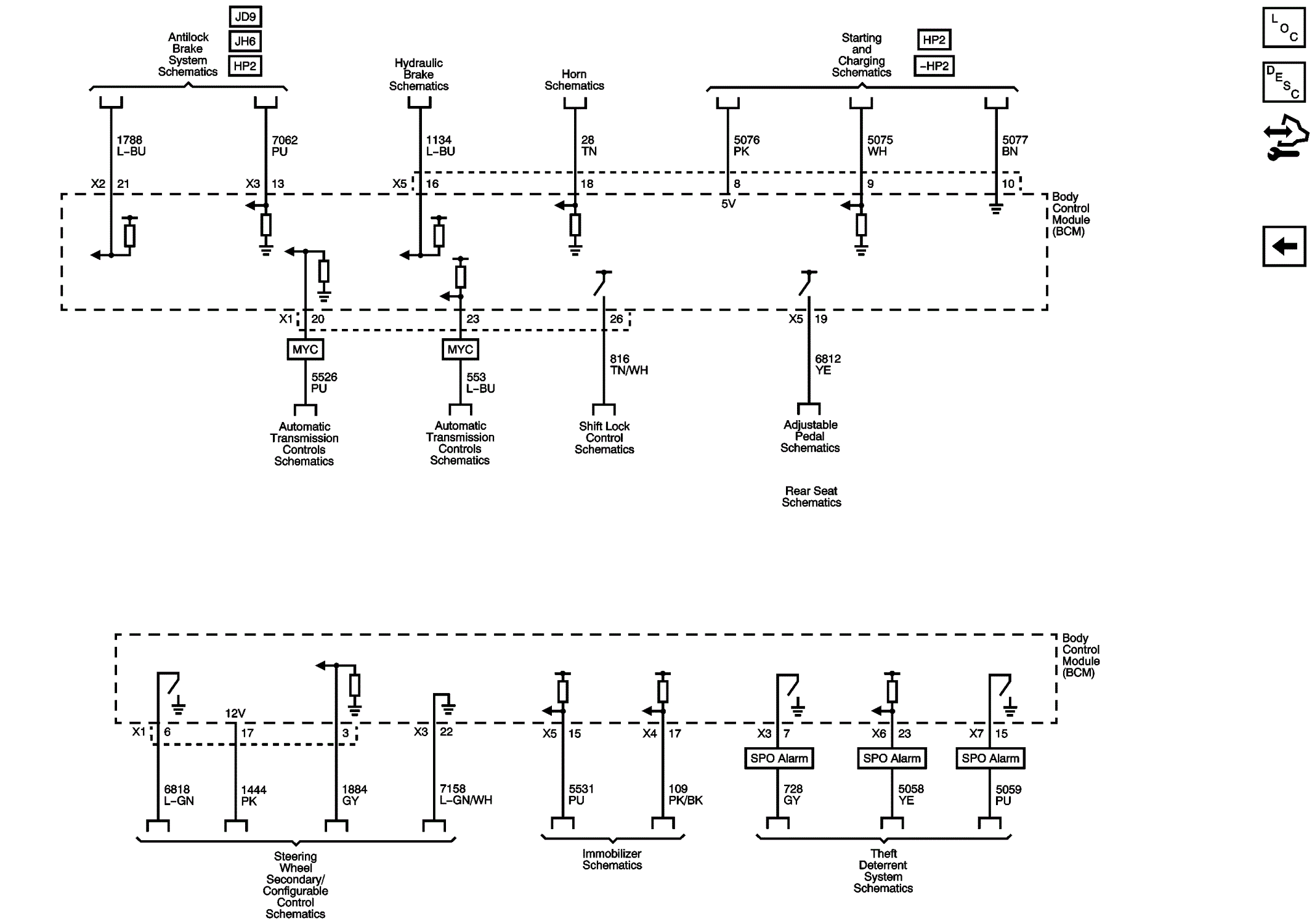

Fig 1: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
