Electrical Component Locator - Powertrain Component Views
>>
Powertrain Component Views
>>
Transfer Case Components (NQH/NQF)
Transfer Case Components (NQH/NQF)
Transfer Case Components (NQH/NQF)
Component Name
Callout
Transfer Case Encoder Motor
1
Vehicle Speed Sensor (VSS)
2
Transfer Case 2/4 Wheel Drive Actuator Position Sensor (NQH)
3

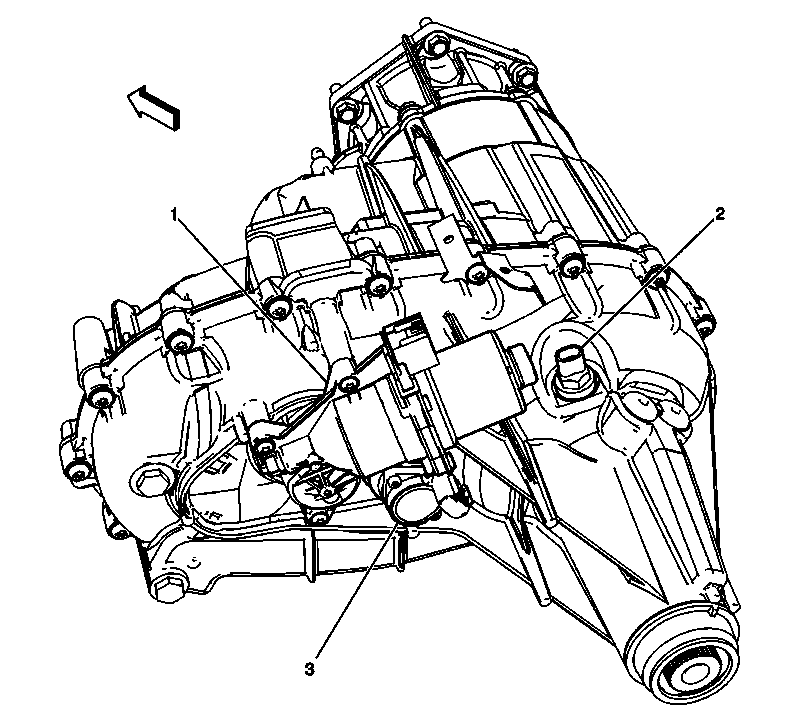

Fig 1: Transfer Case Components (NQH/NQF)
Courtesy of GENERAL MOTORS COMPANY
