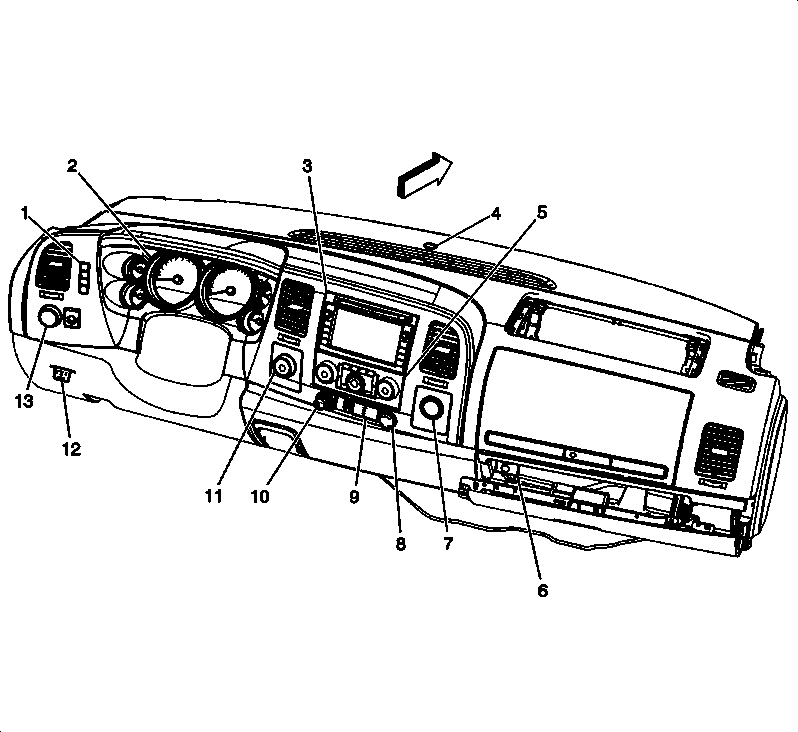

Front of the I/P Components (except YE9)
Front of the I/P Components (except YE9)
| Component Name | Callout |
|---|---|
| Driver Information (DIC) Switch (UK3) | 1 |
| Instrument Panel Cluster (IPC) | 2 |
| Radio | 3 |
| Ambient Light/Sunload Sensor (CJ2)/Ambient Light Sensor (C67/C42/MEX) | 4 |
| HVAC Control Module | 5 |
| Inflatable Restraint I/P Module Disable Switch (C99/MEX) | 6 |
| Power Take-Off (PTO) Switch (PTO) | 7 |
| Accessory Power Outlet - I/P 2 | 8 |
| Multifunction Switch Assembly - I/P (except MEX) | 9 |
| AAccessory Power Outlet - I/P 1 | 10 |
| Transfer Case Shift Control Switch (NQF/NQH) | 11 |
| Trailer Brake Control Switch (JL1) | 12 |
| Headlamp and Panel Dimmer Switch | 13 |
