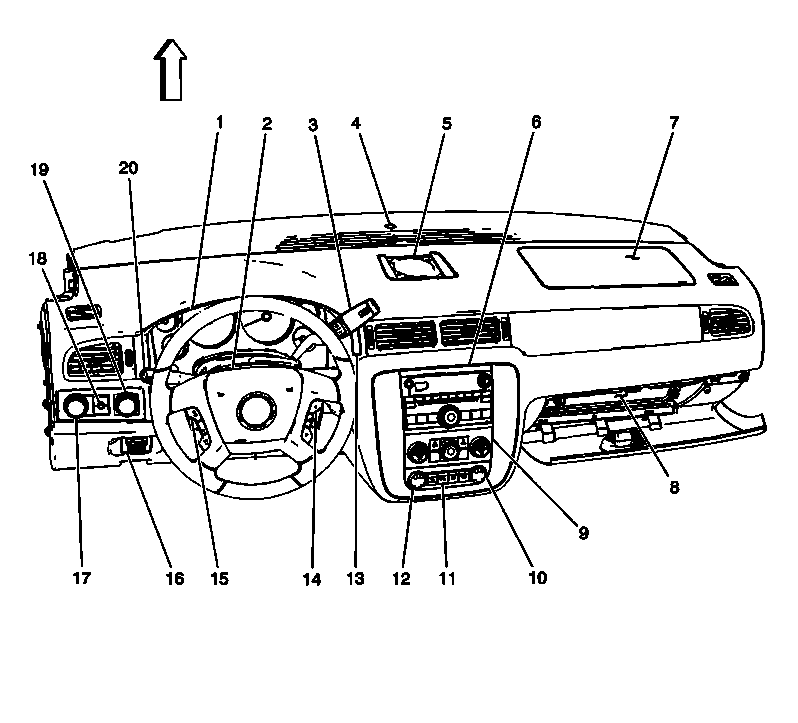

Front of the I/P Components (YE9)
Front of the I/P Components (YE9)
| Component Name | Callout |
|---|---|
| Instrument Panel Cluster (IPC) | 1 |
| Inflatable Restraint Steering Wheel Module | 2 |
| Shift Control Lever | 3 |
| Ambient Light/Sunload Sensor Assembly (CJ2)/Ambient Light Sensor (C67/C42) | 4 |
| Speaker - Center I/P (UQA with Y91) | 5 |
| Radio | 6 |
| Inflatable Restraint I/P Module | 7 |
| I/P Compartment Lamp | 8 |
| HVAC Control Module | 9 |
| Accessory Power Outlet - I/P 2 | 10 |
| Multifunction Switch Assembly - I/P | 11 |
| Accessory Power Outlet - I/P 1 | 12 |
| Driver Information Center (DIC) Switch (UK3) | 13 |
| Steering Wheel Control Switch - Right (UK3) | 14 |
| Steering Wheel Control Switch - Left (K34/KA9) | 15 |
| Trailer Brake Control Switch (JL1) | 16 |
| Headlamp and Panel Dimmer Switch | 17 |
| Dimmer Control | 18 |
| Transfer Case Shift Control Switch (NQF/NQH) | 19 |
| Turn/Signal Multifunction Switch | 20 |
