Electrical Component Locator - Instrument Panel/Center Console Component Views
>>
Instrument Panel/Center Console Component Views
>>
Console Components
Console Components
Console Components
Component Name
Callout
Rear Seat Audio (RSA) Control (UK6)
1
Accessory Power Outlet - Center Console (D07)
2
Audio Amplifier (UQA)
3
Accessory Power Outlet - Center Console Compartment (D07)
4
Noise Compensation Microphone (Y91)
5
Audio/Video Adapter (U42)
6

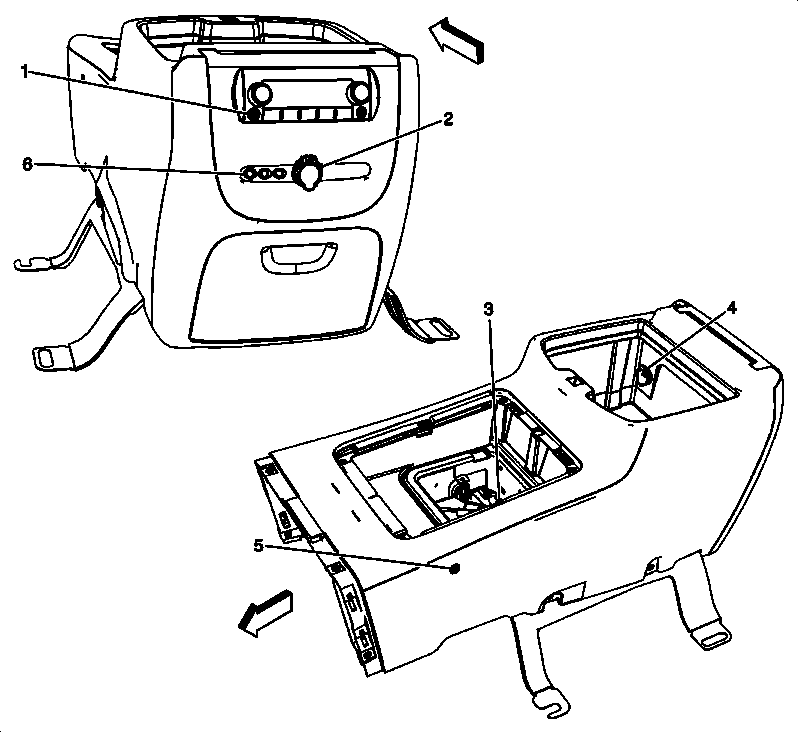

Fig 1: Console Components
Courtesy of GENERAL MOTORS COMPANY
