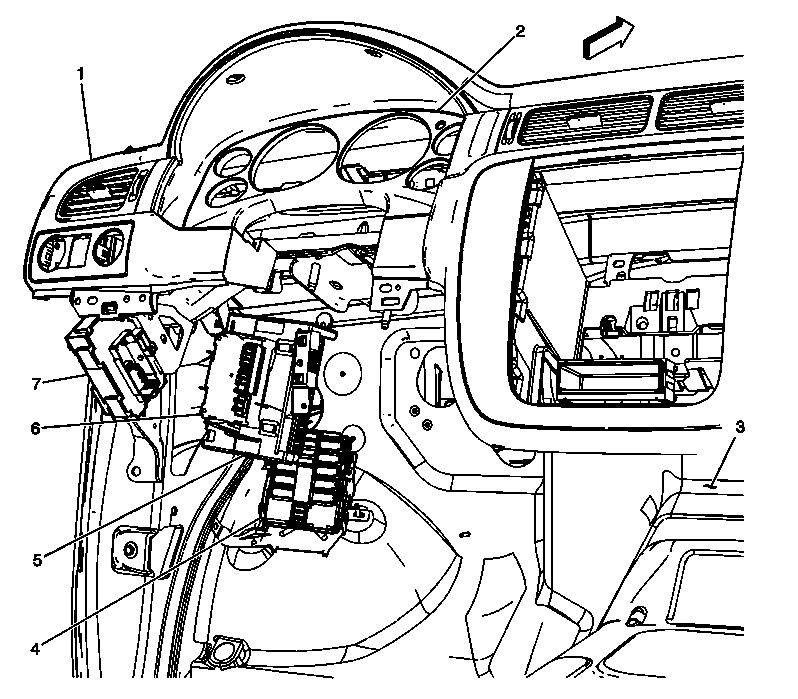

Below the Left Side of the I/P Components - 2 of 2
Below the Left Side of the I/P Components - 2 of 2
| Component Name |
Callout |
| I/P Trim |
1 |
| I/P Cluster Trim |
2 |
| Floor Panel |
3 |
| Junction Block - Left I/P (except MEX) |
4 |
| Body Control Module (BCM) |
5 |
| Transfer Case Shift Control Module (NQF/NQH) |
6 |
| Fuse Block - I/P |
7 |
Courtesy of GENERAL MOTORS COMPANY
