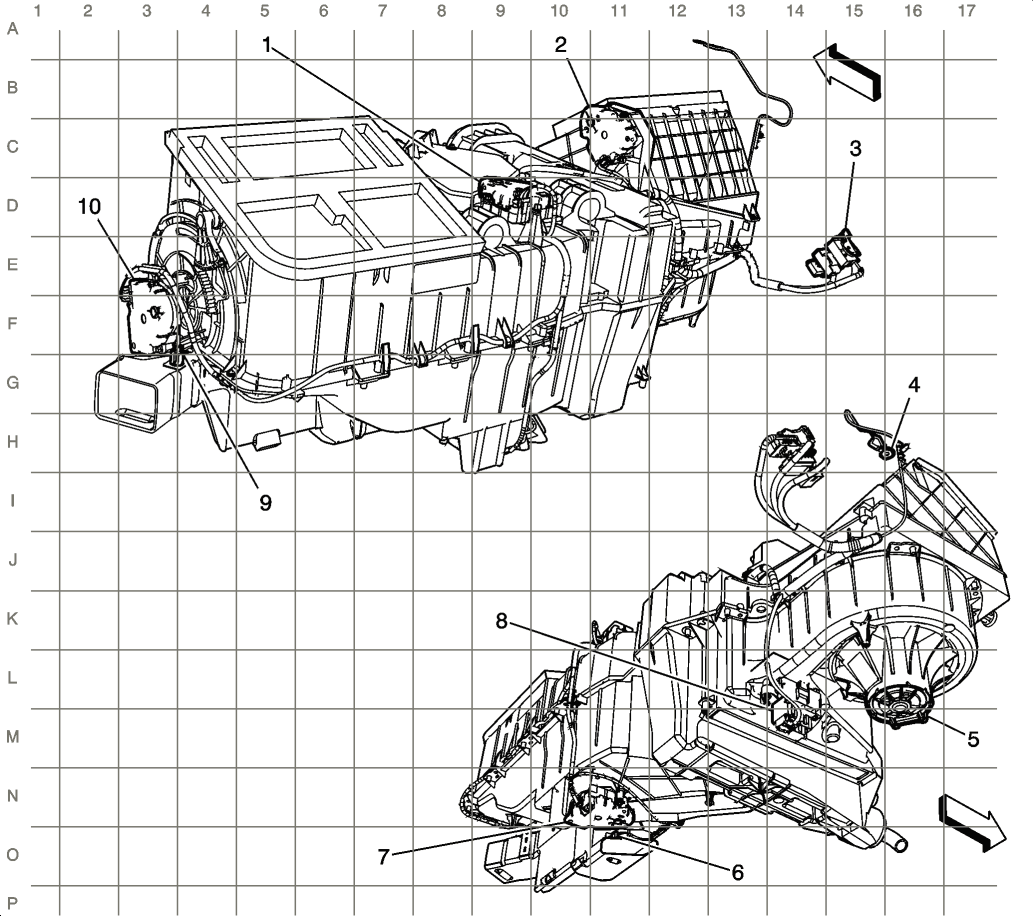

Behind the I/P Components (CJ2)
Behind the I/P Components (CJ2)
| Component Name | Callout |
|---|---|
| Air Temperature Actuator - Right | 1 |
| Recirculation Actuator | 2 |
| Junction Block - Right I/P X4 | 3 |
| G200 | 4 |
| Blower Motor | 5 |
| Air Temperature Sensor - Lower Right | 6 |
| Air Temperature Actuator - Left | 7 |
| Blower Motor Control Module | 8 |
| Air Temperature Sensor - Lower Left | 9 |
| Mode Actuator | 10 |
