Behind the I/P Components (C67/C42)

Behind the I/P Components (C67/C42)

Component Name Callout
Air Temperature Actuator 1
Recirculation Actuator (C67) 2
Blower Motor 3
Blower Motor Control Module 4
Mode Actuator 5

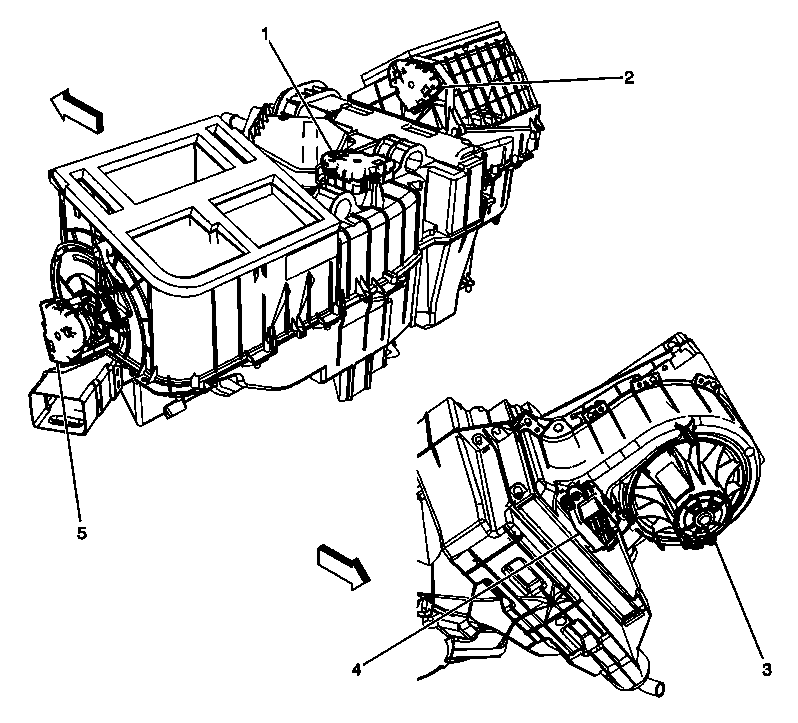

Fig 1: Behind the I/P Components (C67/C42)
GM2758246Courtesy of GENERAL MOTORS COMPANY
