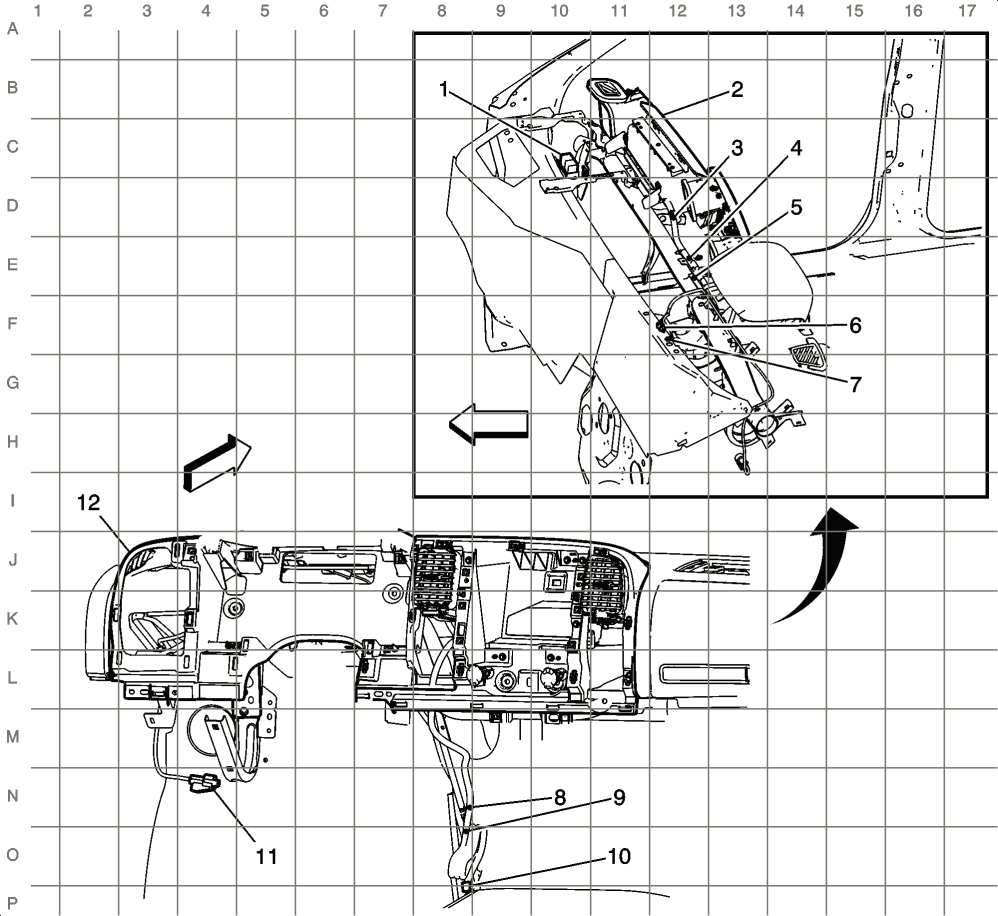

Behind the I/P Components (9L4)
Behind the I/P Components (9L4)
| Component Name |
Callout |
| Fuse Block- Mobile Radio |
1 |
| I/P Structure- Right Side |
2 |
| J224 |
3 |
| J219 |
4 |
| J209 |
5 |
| X219 |
6 |
| X214 |
7 |
| J210 |
8 |
| J211 |
9 |
| Blunt Cut- Mobile Radio Provision |
10 |
| X226 |
11 |
| Instrument Panel |
12 |
Courtesy of GENERAL MOTORS COMPANY
