Front of the Engine Compartment Components (Diesel)

Front of the Engine Compartment Components (Diesel)

Component Name Callout
Engine 1
Front Fascia 2
Surge Tank 3
Engine Coolant Level Switch 4

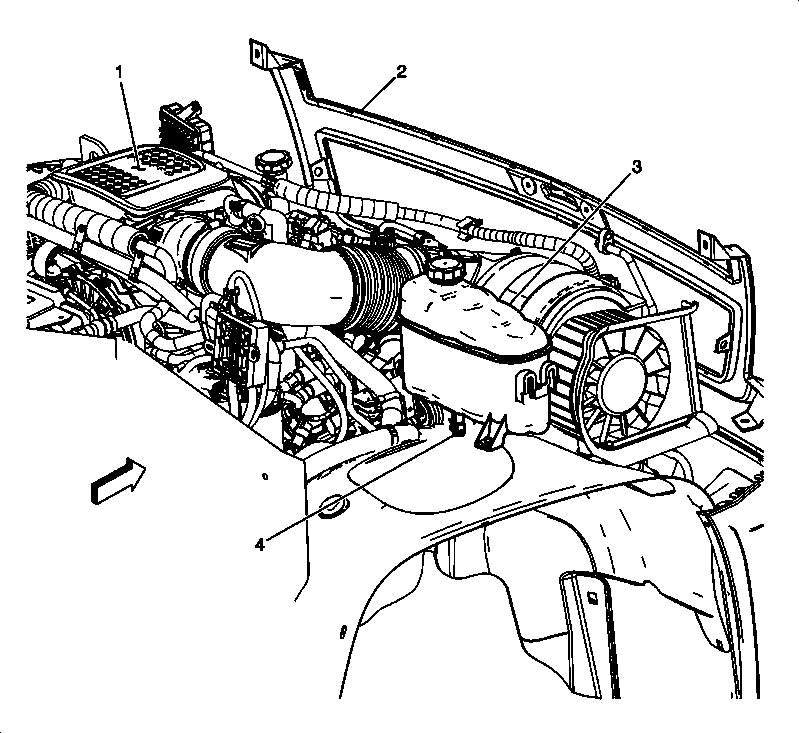

Fig 1: Front of the Engine Compartment Components (Diesel)
GM2757571Courtesy of GENERAL MOTORS COMPANY
