K111 Fuel Pump Driver Control Module (L5P)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2017 GMC Sierra 3500 HD, 2017 GMC Sierra 2500 HD, 2017 GMC Sierra 1500, 2017 Chevrolet Silverado 3500 HD, and 2017 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
|
|

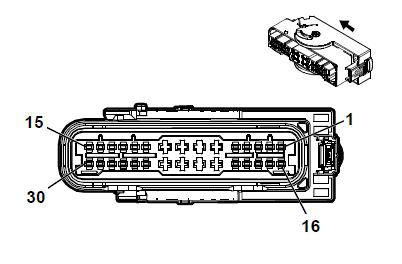

Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13888308
- Service Connector: 19354086
- Description: 30-Way F 1.5, 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300440 |
J-35616-35 (VT) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
19329958 |
J-35616-2A (GY) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BN/VT |
455 |
Fuel Filter Temperature Signal |
II |
- |
| 5 |
0.5 |
BU/YE |
6861 |
Water In Fuel Sensor Signal |
II |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
2.5 |
RD/VT |
1940 |
Battery Positive Voltage |
I |
- |
| 8 |
2.5 |
GY |
120 |
Fuel Pump Control |
I |
- |
| 9 |
2.5 |
YE/GY |
4137 |
Fuel Pump Supply Voltage Phase 2 |
I |
- |
| 10 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
BU/VT |
1589 |
Primary Fuel Level Sensor Signal |
II |
- |
| 14 |
0.5 |
BU/WH |
1937 |
Secondary Fuel Level Sensor Signal |
II |
- |
| 15 |
0.5 |
WH |
4499 |
High Speed GMLAN Serial Data (-) 7 |
II |
- |
| 16 |
0.5 |
VT/BU |
3674 |
NOx Sensor 1 Control |
II |
- |
| 17 |
0.75 |
VT/GN |
439 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 18 |
0.5 |
GN/GY |
465 |
Fuel Pump Primary Relay Control |
II |
- |
| 19 |
0.5 |
BK/VT |
412 |
Fuel Filter Temperature Sensor Low Reference |
II |
- |
| 20 - 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
2.5 |
BK |
2150 |
Ground |
I |
- |
| 23 |
0.5 |
BK |
7444 |
Fuel System Control Module Shield Ground |
I |
- |
| 24 |
2.5 |
WH/BN |
4138 |
Fuel Pump Supply Voltage Phase 3 |
I |
- |
| 25 |
0.5 |
BK/BU |
6863 |
Water In Fuel Sensor Low Reference |
II |
- |
| 26 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
0.5 |
BK/GN |
6281 |
Fuel Level Sensor Low Reference |
II |
- |
| 29 |
0.5 |
BK/GN |
6281 |
Fuel Level Sensor Low Reference |
II |
- |
| 30 |
0.5 |
BU/BN |
4498 |
High Speed GMLAN Serial Data (+) 7 |
II |
- |
