Video Display Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

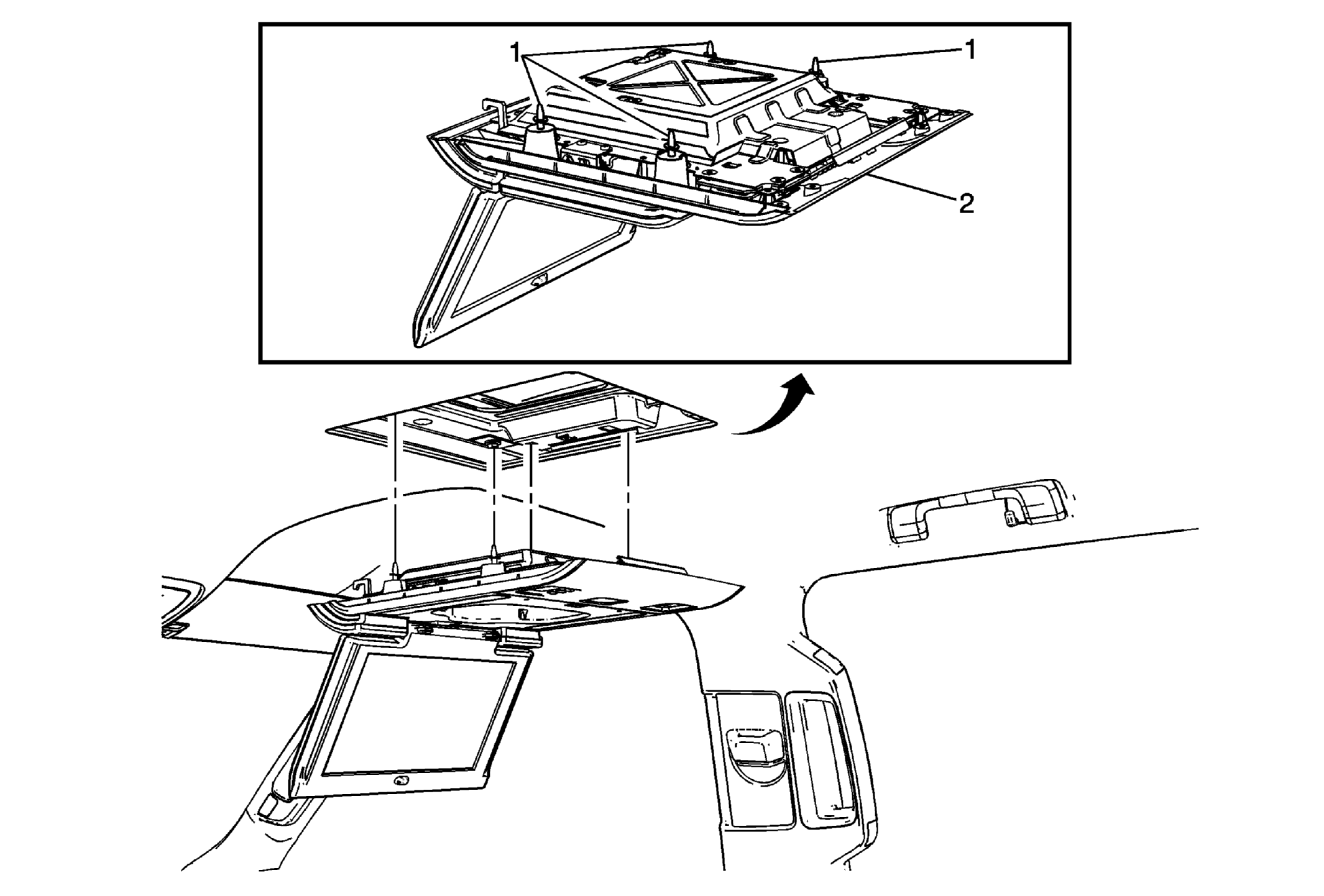

Fig 1: Video Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Video Display Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . NOTE: Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded.
2	Video Display Procedure Pull down to disengage the retainer clip and remove from the vehicle. Disconnect the electrical connector.

Callout

Component Name

Video Display Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

NOTE:

Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded.

Video Display

Procedure

Pull down to disengage the retainer clip and remove from the vehicle.
Disconnect the electrical connector.
