Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

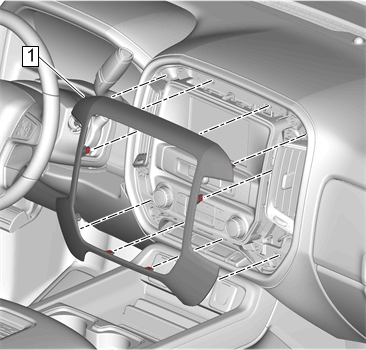

    Fig 1: Instrument Panel Accessory Bezel
    GM4632413Courtesy of GENERAL MOTORS COMPANY
  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel accessory bezel (1) to the instrument panel assembly.
  2. Instrument Panel Accessory Bezel - Remove

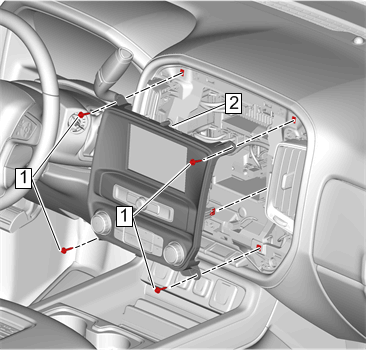

    3. Fig 2: Radio Control Bolts And Instrument Panel Accessory Bezel
    GM4632417Courtesy of GENERAL MOTORS COMPANY
  3. Radio Control Bolt (1) - Remove
  4. Disconnect the electrical connectors.
  5. Instrument Panel Accessory Bezel (2) - Remove

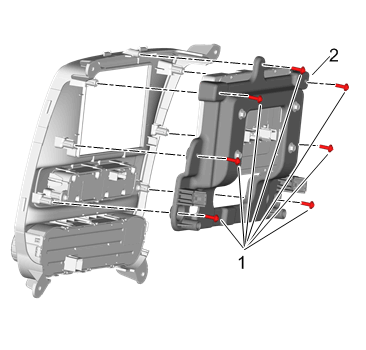

    6. Fig 3: Radio Control Bracket
    GM4632422Courtesy of GENERAL MOTORS COMPANY
  6. Radio Bracket Bolt (1) - Remove [7x]
  7. Radio Control Bracket (2) - Remove

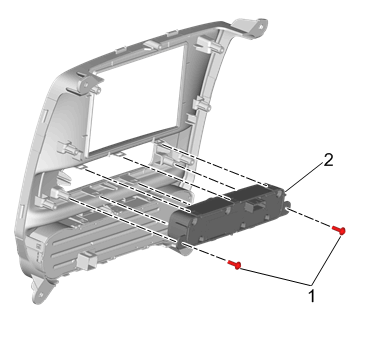

    8. Fig 4: Radio Function Switch
    GM4632434Courtesy of GENERAL MOTORS COMPANY
  8. Radio Bracket Bolt (1) - Remove [2x]
  9. Release the retaining tabs.
  10. Radio Function Switch (2) - Remove
