Radio Control Switch Replacement - Steering Wheel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

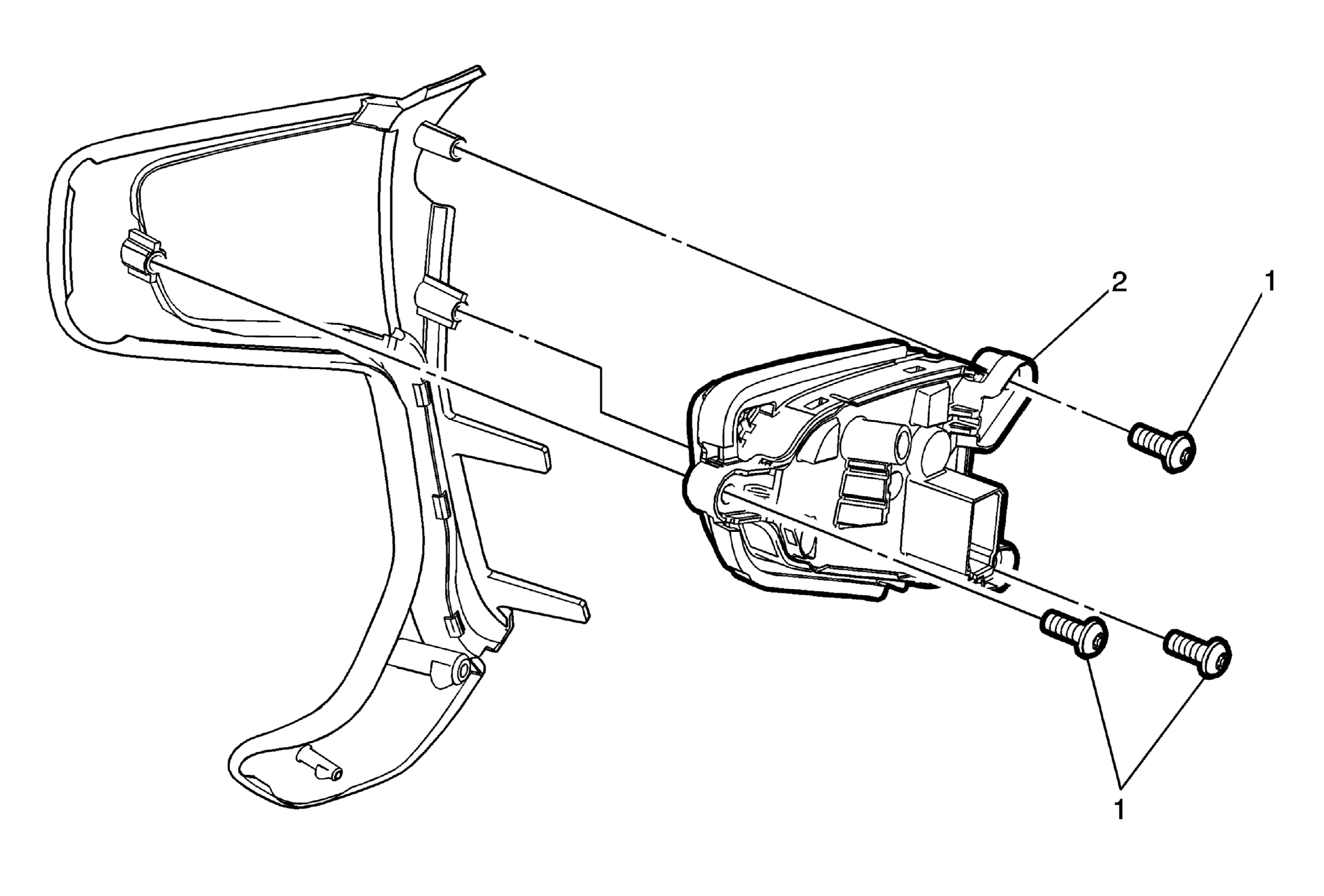

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Wheel Spoke Cover Replacement (LH with Cruise Control Switch)Steering Wheel Spoke Cover Replacement (RH with Radio Control Switch) |
|
| 1 | Steering Wheel Spoke Cover Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Control Switch |
