Radio Control Switch Replacement - Rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

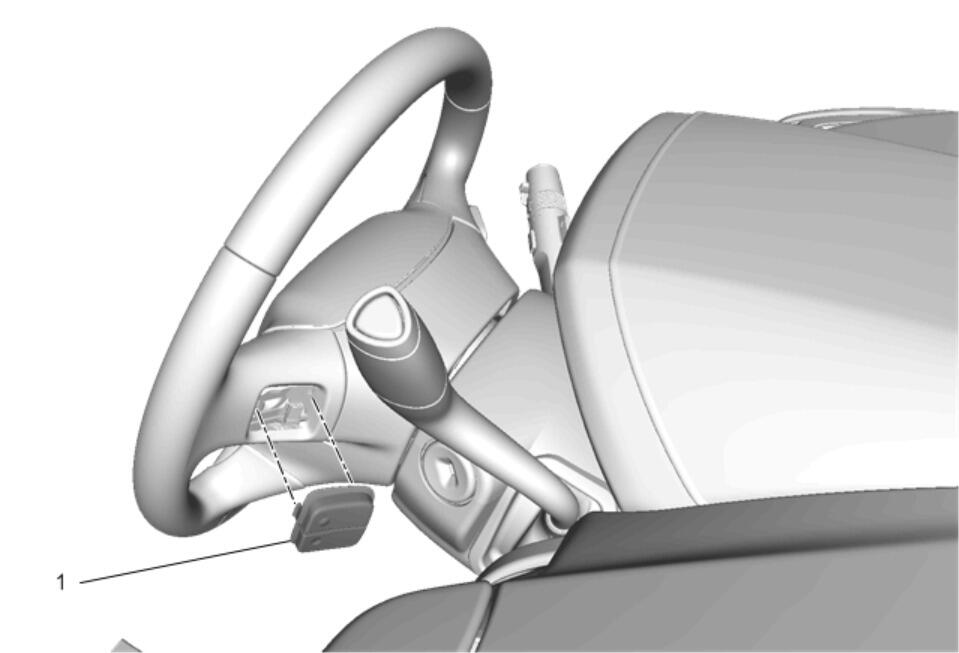

Fig 1: Radio Control Switch - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Control Switch - Rear Procedure Use the appropriate tool to gently release the switch from the rear of the steering wheel. Disconnect the electrical connector.
