Navigation Signal Splitter Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

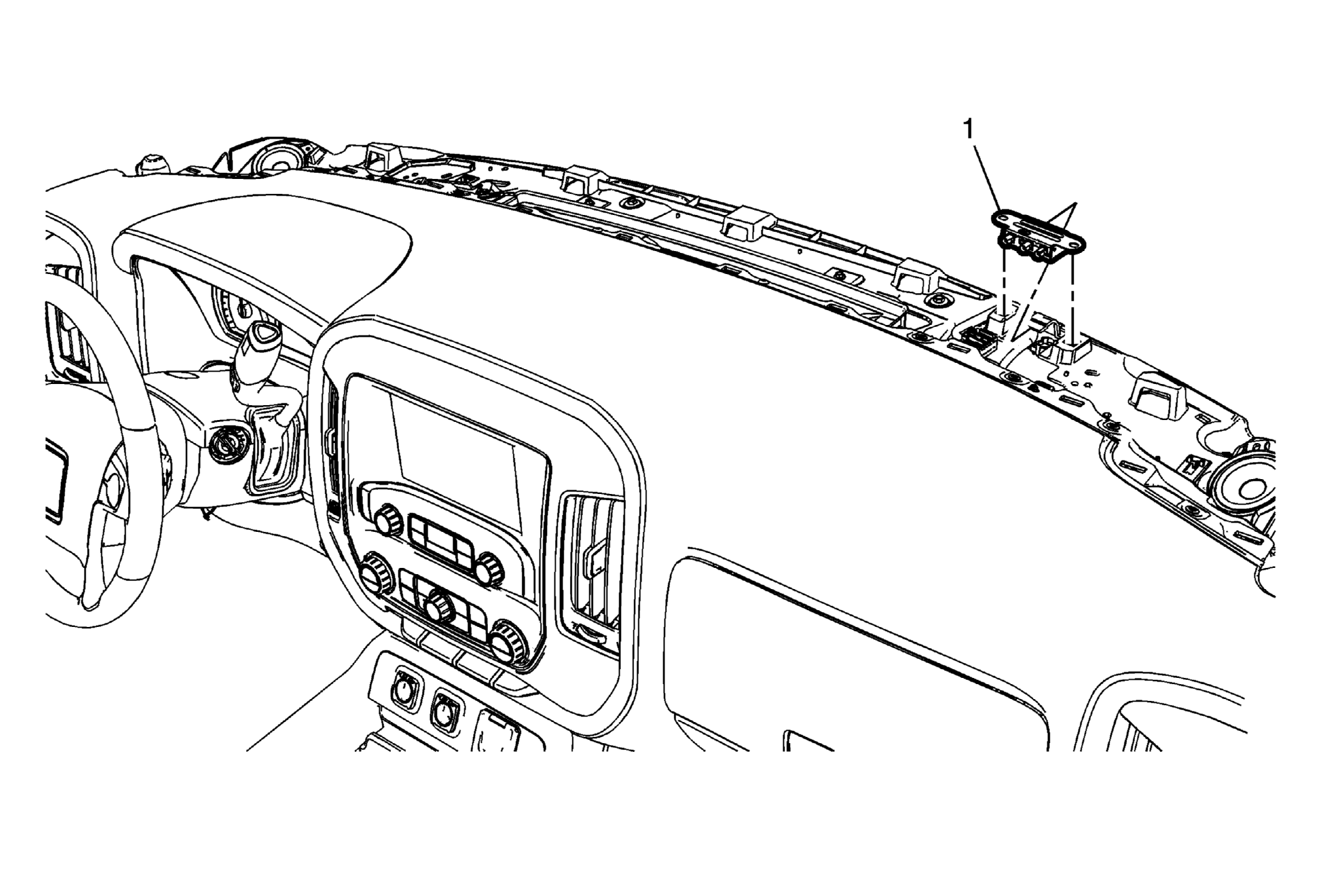

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel extension assembly. Refer to Instrument Panel Extension Replacement .
1	Navigation Signal Splitter Procedure Disconnect the electrical connections. Slide splitter from retaining tabs on the bracket to remove.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel extension assembly. Refer to Instrument Panel Extension Replacement .

Navigation Signal Splitter

Procedure

Disconnect the electrical connections.
Slide splitter from retaining tabs on the bracket to remove.
