Multimedia Receptacle Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 GMC Sierra 3500 HD, 2016 GMC Sierra 2500 HD, 2016 GMC Sierra 1500, 2016 Chevrolet Silverado 3500 HD, and 2016 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement . |
|

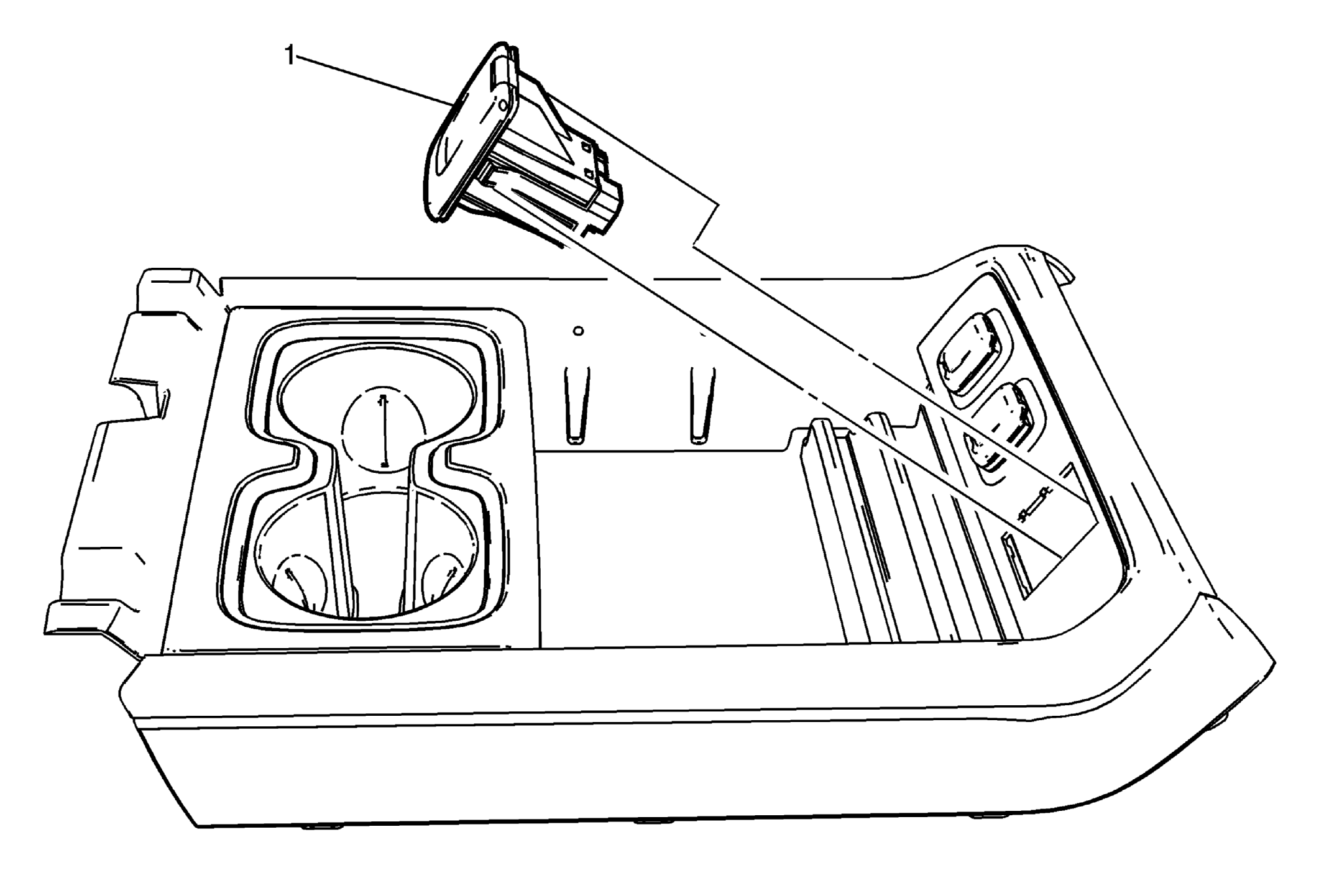

| 1 | Multimedia Receptacle Procedure Use the appropriate tool to depress the tabs on the receptacle to remove from the trim plate. |
